How do i configure Ezeelogin to authenticate using OpenLdap(Pam-Ldap) in centos ?

Integration of Open-LDAP (PAM-LDAP) in centos

Make sure that PHP-LDAP extension is installed on the server

root@jumpserver:~# yum intall php-ldap ;apachectl restart

1.  Login to Web-GUI > open settings > Ldap

Add the details in LDAP setting page.Check the following video to fill and configure Pam-LDAP



 Add the details of LDAP configurations

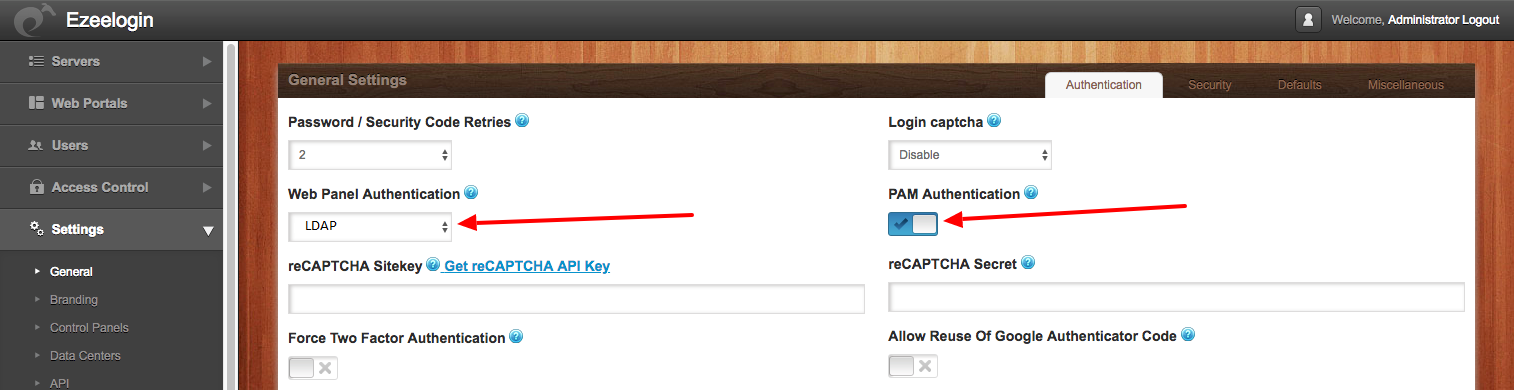

2  Under Settings > general > Authentication > change Webpanel authentication to ldap & Check PAM Authentication



3. Select the LDAP users and import to ezeelogin




you can confirm the imported LDAP users were listed in Users



Now you can login to ezeelogin with ldap user in ezeelogin GUI


Let's configure PAM_LDAP Authentication for SSH

Login to ezeelogin ssh server to configure pam-LDAP


Install pam-LDAP module by the following command

 #yum install nss-pam-ldapd nscd


  Enter the command to auto-configure

#authconfig-tui


 Select use ldap & use LDAP authentication



  Enter the details in LDAP setting you can use the above video to fetch details

  Add Binddn & bind password to /etc/nslcd.conf


vi /etc/nslcd.conf

binddn cn=admin,dc=eztest,dc=net

bindpw chaSD@#234JH56hj^7



  And add bindn and bind password to the file

 Enable autocreate home directory on login by the following command

authconfig --enablemkhomedir --update


Restart nslcd & nscd service

service nslcd restart && service nscd restart

Ensure the login shell of ldap user is /usr/local/bin/ezsh


Now run the id / finger command and see whether you are able get LDAP user details


[root@jumpserver ~]# finger jake

Login: jake          Name: jake t

Directory: /home/jake     Shell: /usr/local/bin/ezsh

Last login Wed Jun 13 05:02 (EDT) on pts/1 from 10.1.1.13

No mail.

No Plan.

[root@jumpserver ~]# id jake

uid=1001(jake) gid=20001(domain users) groups=1547600513(domain users)


Run an ldapsearch to ensure that  results are correctly fetched from the ldap server.

ldapsearch -v -x -H ldap://10.11.1.164 -b "cn=jake j,cn=Users,dc=ad2016,dc=admod,dc=net" -D "cn=administrator,dc=ad2016,dc=admod,dc=net" -w redhat
ldap_initialize( ldap://10.11.1.103:389/??base )
filter: (objectclass=*)
requesting: All userApplication attributes
# extended LDIF
#
# LDAPv3
# base <cn=jake j,dc=ad2016,dc=admod,dc=net> with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# jake j, ad2016.admod.net
dn: cn=jake j,dc=ad2016,dc=admod,dc=net
cn: jake j
givenName: jake
gidNumber: 500
sn: j
objectClass: inetOrgPerson
objectClass: posixAccount
objectClass: top
userPassword:: e01ENX15VHpOZUxJSFpTZzBZaGF6c3ZjQjVnPT0=
uidNumber: 1001
uid: jake
homeDirectory: /home/jake
loginShell: /usr/local/bin/ezsh

# search result
search: 2
result: 0 Success

# numResponses: 2
# numEntries: 1
