How to secure SSH jump server / SSH bastion host / SSH gateway

What is an SSH Bastion Host

An SSH Bastion host is simply a single, hardened server that you “jump” through in order to access other servers or devices on the inner network. it’s simply a server that all of your users can log into and use as a relay server to connect to other Linux servers, Routers, Switches, and more. Find more about the ssh bastion host.

Security measures to harden Ezeelogin Linux SSH Jump server



  • Two-factor authentication Enforce 2-factor authentication like Google 2FA Auth or Yubikey 2FA  or DUO Security so that both the Ezeelogin web GUI and ssh interface have an additional layer of protection.

  • SSL For HTTPS - Enable SSL and access your web GUI using HTTPS only. You would need to install your SSL certificate for the GUI and then enable SSL mode in Ezeelogin settings. Once the SSL certificates are installed, refer How to enable or force SSL or disable SSL

  • Enable Captcha - Enable reCaptcha for the web GUI in the Ezeelogin settings
  • Hardening SSH Server Daemon configuration file.

    Disable password authentication, Disable AllowTCPForwarding, and Disable Password Authentication as Public key-based authentication is recommended

    root@jump#~ vi /etc/sshd/sshd_config



    #Allow Key-based authentication as its harder to brute-force or sniff than a password

    Pubkeyauthentication yes



    #Disable password authentication to the jump server as key-based authentication is much more secure. Make sure to enable this under localhost section below.
    #Make sure to add in your SSH Public key before you disable password authentication to prevent lock outs.

    PasswordAuthentication no

    #Disable Tcp Forwarding on the jump server

    AllowTcpForwarding no

    #Disable direct root logins to servers and instead login as non privileged user and switch to root
    #Make sure that a non privileged user can ssh and switch to become a root user before disabling direct root login.

    PermitRootLogin no



    #SSHD localhost settings. ( Note the rules under the following section will apply only to localhost ( 127.0.0.1) )

    Match Address 127.0.0.1

    PermitRootLogin yes

    PubkeyAuthentication yes
    PasswordAuthentication yes



    #Do a syntax check of sshd configuration file as shown below

    root@jump:~  sshd -T

    # restart sshd daemon

    root@jump:# service sshd restart

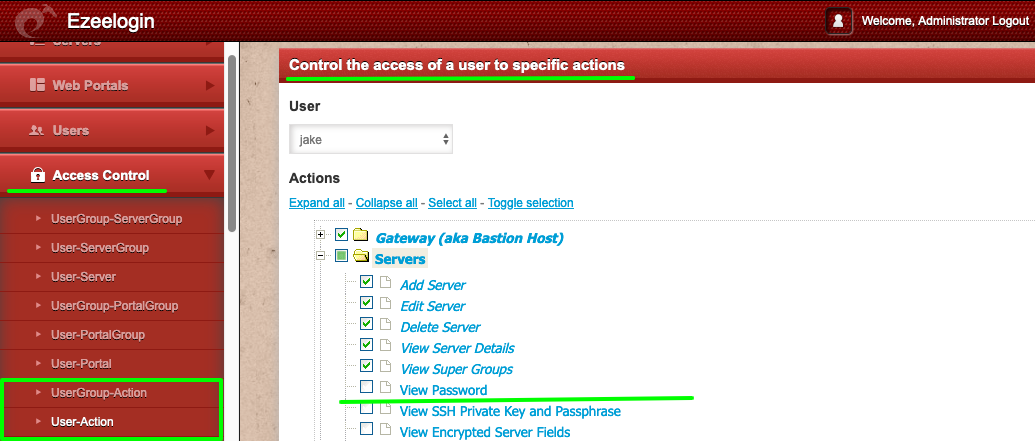

    Disallow view server password field in Ezeelogin GUI.
    view password disable ezeelogin

  • Enable Firewall and Lockdown access - Always, restrict the ips from which staffs are allowed to ssh from. You should be allowing only your ips, employees ips and the default rule should block ssh for everyone and should be granted explicitly. You can achieve this using iptables or setting up rules in host.allow/hosts.deny files.
  • SSH Gateway behind VPN is Very Good - Having the SSH Jump server behind a VPN is very good as it prevents unauthorized traffic. This is highly recommended.
