Integrate Red Hat IDM in Ezeelogin jump server

Follow the steps to interate Red Hat IDM (Ldap protocol) in ezeelogin

Refer this document to install an IDM server



  1. Run ldapsearch on IDM server to find the ’DN’ of the admin user or other user having admin privileges

          You can run "ldapsearch" comand on IDM server and it will return all user,usergroup details etc

[root@ipaserver ~]# ldapsearch
SASL/GSSAPI authentication started
SASL username: admin@EXAMPLE.COM
SASL SSF: 256
SASL data security layer installed.
# extended LDIF
#
# LDAPv3
# base <dc=example,dc=com> (default) with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#



# compat, example.com
dn: cn=compat,dc=example,dc=com
objectClass: extensibleObject
cn: compat



# users, compat, example.com
dn: cn=users,cn=compat,dc=example,dc=com
objectClass: extensibleObject
cn: users



# marc, users, compat, example.com
dn: uid=marc,cn=users,cn=compat,dc=example,dc=com
objectClass: posixAccount
objectClass: ipaOverrideTarget
objectClass: top
gecos: marc f
cn: marc f
uidNumber: 1023000004
gidNumber: 1023000002
loginShell: /bin/sh
homeDirectory: /home/marc
ipaAnchorUUID:: OklQQTpleGFtcGxlLmNvbTpmYjVjYjAwZS01NWExLTExZWItODc0Ni0wODAwMj
c0OTdmY2M=
uid: marc



# steve, users, compat, example.com
dn: uid=steve,cn=users,cn=compat,dc=example,dc=com
objectClass: posixAccount
objectClass: ipaOverrideTarget
objectClass: top
gecos: steve m
cn: steve m
uidNumber: 1023000003
gidNumber: 1023000000
loginShell: /bin/sh
homeDirectory: /home/steve
ipaAnchorUUID:: OklQQTpleGFtcGxlLmNvbTowOTU1ZTZjMi01NWExLTExZWItOWFiNS0wODAwMj
c0OTdmY2M=
uid: steve



# manu, users, compat, example.com
dn: uid=manu,cn=users,cn=compat,dc=example,dc=com
objectClass: posixAccount
objectClass: ipaOverrideTarget
objectClass: top
gecos: manu c
cn: manu c
uidNumber: 1023000001
gidNumber: 1023000001
loginShell: /bin/sh
homeDirectory: /home/manu
ipaAnchorUUID:: OklQQTpleGFtcGxlLmNvbTpkNjVkMDA5NC01NTlmLTExZWItYWNjZi0wODAwMj
c0OTdmY2M=
uid: manu



# admin, users, compat, example.com
dn: uid=admin,cn=users,cn=compat,dc=example,dc=com
objectClass: posixAccount
objectClass: ipaOverrideTarget
objectClass: top
gecos: Administrator
cn: Administrator
uidNumber: 1023000000
gidNumber: 1023000000
loginShell: /bin/bash
homeDirectory: /home/admin
ipaAnchorUUID:: OklQQTpleGFtcGxlLmNvbToyMGIzMDdkZS01NThiLTExZWItOGEwNi0wODAwMj
c0OTdmY2M=
uid: admin



# ng, compat, example.com
dn: cn=ng,cn=compat,dc=example,dc=com
objectClass: extensibleObject
cn: ng



# groups, compat, example.com
dn: cn=groups,cn=compat,dc=example,dc=com
objectClass: extensibleObject
cn: groups

   Or you can run ldapsearch command to find the "DN" of admin user. Replace  dc=example,dc=com  with your domain name


[root@ipaserver ~]# ldapsearch -b "uid=admin,cn=users,cn=accounts,dc=example,dc=com"


SASL/GSSAPI authentication started
SASL username: admin@EXAMPLE.COM
SASL SSF: 256
SASL data security layer installed.
# extended LDIF
#
# LDAPv3
# base <uid=admin,cn=users,cn=accounts,dc=example,dc=com> with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# admin, users, accounts, example.com
dn: uid=admin,cn=users,cn=accounts,dc=example,dc=com
objectClass: top
objectClass: person
objectClass: posixaccount
objectClass: krbprincipalaux
objectClass: krbticketpolicyaux
objectClass: inetuser
objectClass: ipaobject
objectClass: ipasshuser
objectClass: ipaSshGroupOfPubKeys
uid: admin
krbPrincipalName: admin@EXAMPLE.COM
cn: Administrator
sn: Administrator
uidNumber: 1023000000
gidNumber: 1023000000
homeDirectory: /home/admin
loginShell: /bin/bash
gecos: Administrator
ipaUniqueID: 20b307de-558b-11eb-8a06-080027497fcc
memberOf: cn=admins,cn=groups,cn=accounts,dc=example,dc=com
memberOf: cn=Replication Administrators,cn=privileges,cn=pbac,dc=example,dc=co
m
memberOf: cn=Add Replication Agreements,cn=permissions,cn=pbac,dc=example,dc=c
om
memberOf: cn=Modify Replication Agreements,cn=permissions,cn=pbac,dc=example,d
c=com
memberOf: cn=Read Replication Agreements,cn=permissions,cn=pbac,dc=example,dc=
com
memberOf: cn=Remove Replication Agreements,cn=permissions,cn=pbac,dc=example,d
c=com
memberOf: cn=Modify DNA Range,cn=permissions,cn=pbac,dc=example,dc=com
memberOf: cn=Read PassSync Managers Configuration,cn=permissions,cn=pbac,dc=ex
ample,dc=com
memberOf: cn=Modify PassSync Managers Configuration,cn=permissions,cn=pbac,dc=
example,dc=com
memberOf: cn=Read LDBM Database Configuration,cn=permissions,cn=pbac,dc=exampl
e,dc=com
memberOf: cn=Add Configuration Sub-Entries,cn=permissions,cn=pbac,dc=example,d
c=com
memberOf: cn=Read DNA Range,cn=permissions,cn=pbac,dc=example,dc=com
memberOf: cn=Host Enrollment,cn=privileges,cn=pbac,dc=example,dc=com
memberOf: cn=System: Add krbPrincipalName to a Host,cn=permissions,cn=pbac,dc=
example,dc=com
memberOf: cn=System: Enroll a Host,cn=permissions,cn=pbac,dc=example,dc=com
memberOf: cn=System: Manage Host Certificates,cn=permissions,cn=pbac,dc=exampl
e,dc=com
memberOf: cn=System: Manage Host Enrollment Password,cn=permissions,cn=pbac,dc
=example,dc=com
memberOf: cn=System: Manage Host Keytab,cn=permissions,cn=pbac,dc=example,dc=c
om
memberOf: cn=System: Manage Host Principals,cn=permissions,cn=pbac,dc=example,
dc=com
memberOf: cn=trust admins,cn=groups,cn=accounts,dc=example,dc=com
krbLastPwdChange: 20210113104036Z
krbPasswordExpiration: 20210413104036Z
krbExtraData:: AAIkzv5fcm9vdC9hZG1pbkBFWEFNUExFLkNPTQA=
krbLoginFailedCount: 0
krbLastFailedAuth: 20210113161038Z

# search result
search: 4
result: 0 Success

# numResponses: 2
# numEntries: 1

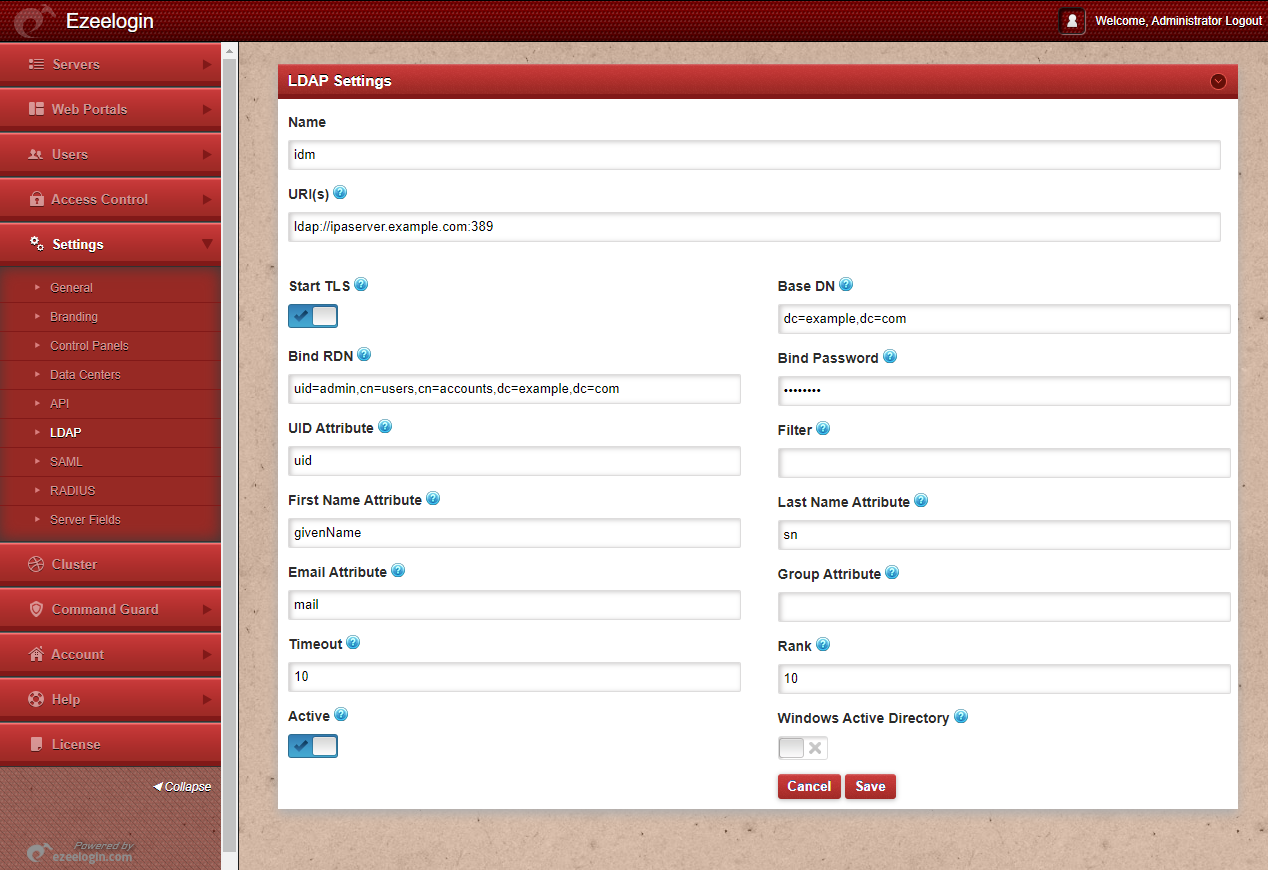

2 .  Login to Ezeelogin Web-GUI > open settings > Ldap


   Add the details of LDAP configurations . Refer the first step to find BindDN & attributes

Refer the article if got the error while configuring with TLS - "error:14090086:SSL routines:ssl3_get_server_certificate:certificate verify failed (self signed certificate in certificate chain)"

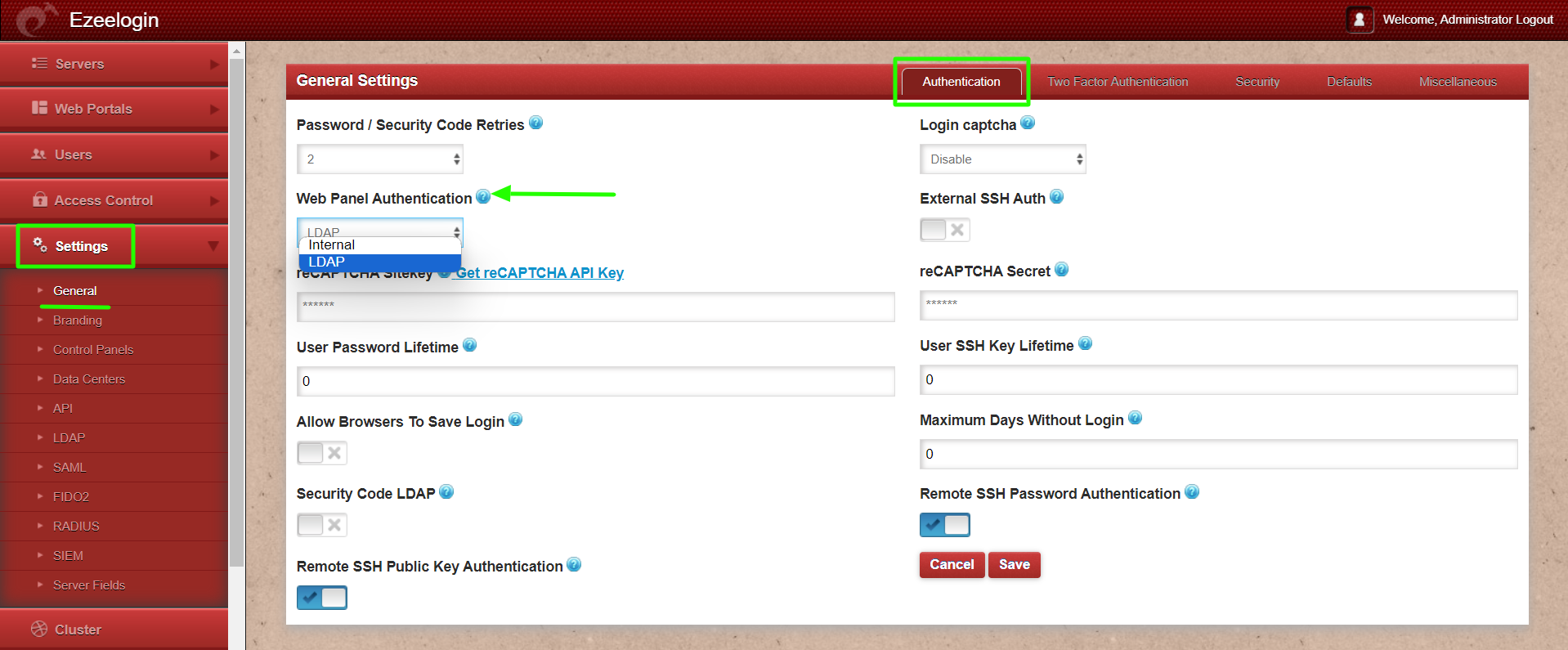

3. Go to  S ettings > general > Authentication > change Webpanel authentication to ldap




If you want to configure IDM/LDAP authentication in backend skip STEP 4

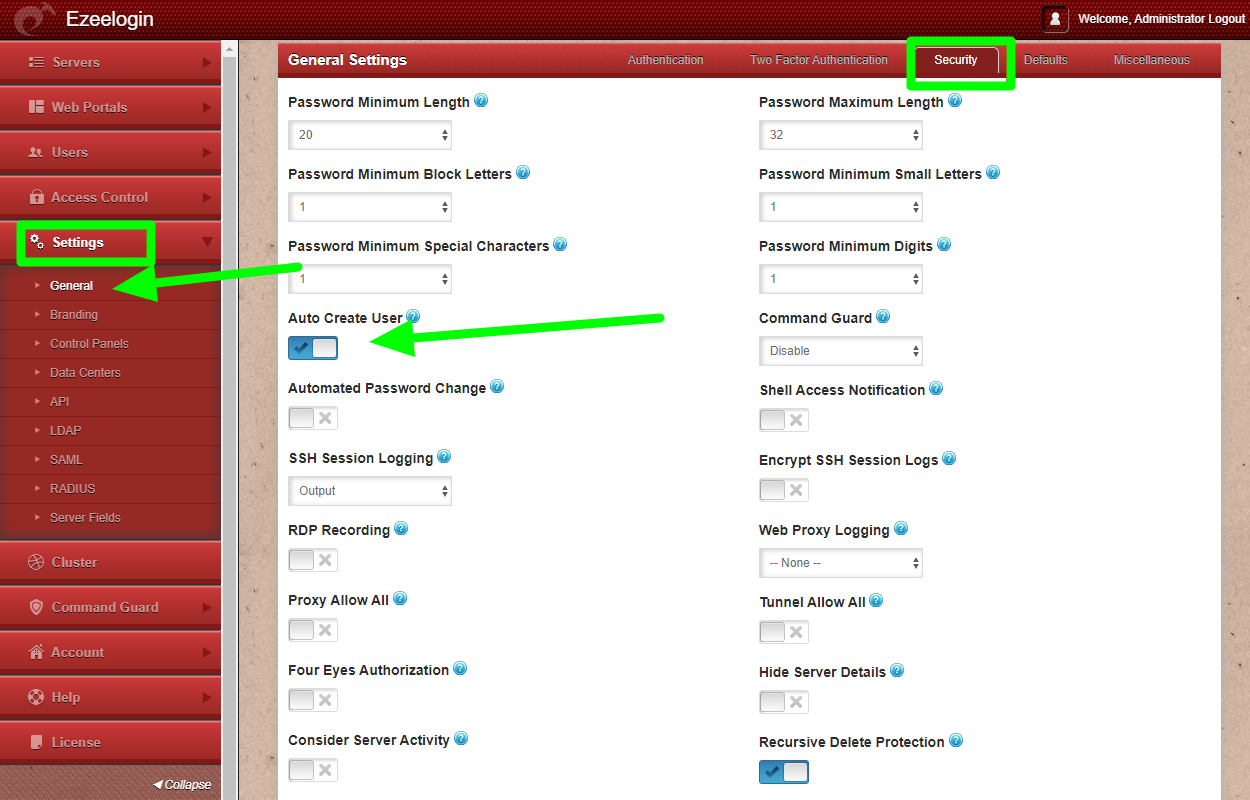

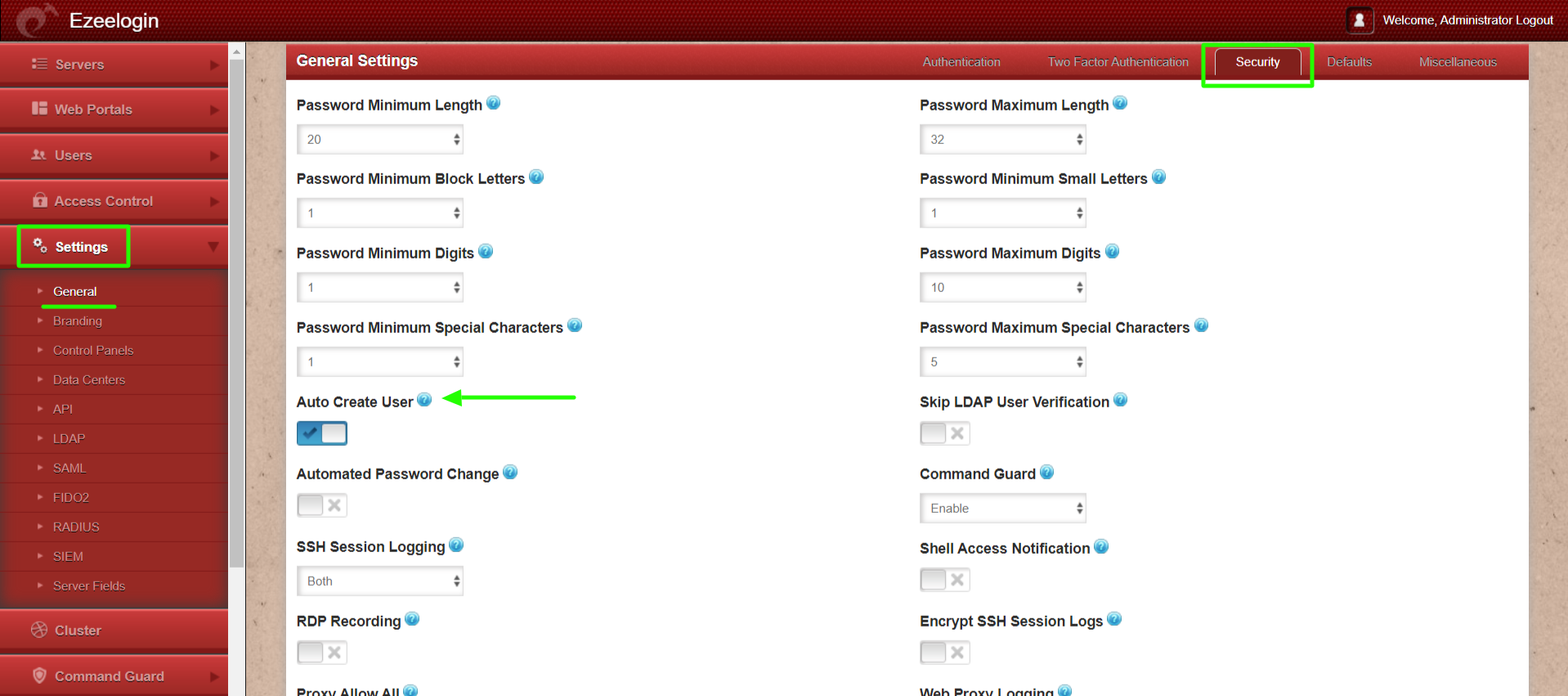

4.  Open Settings > General settings > Security > Check Auto Create user



5. Select the LDAP users and click on the button to  import users into Ezeelogin

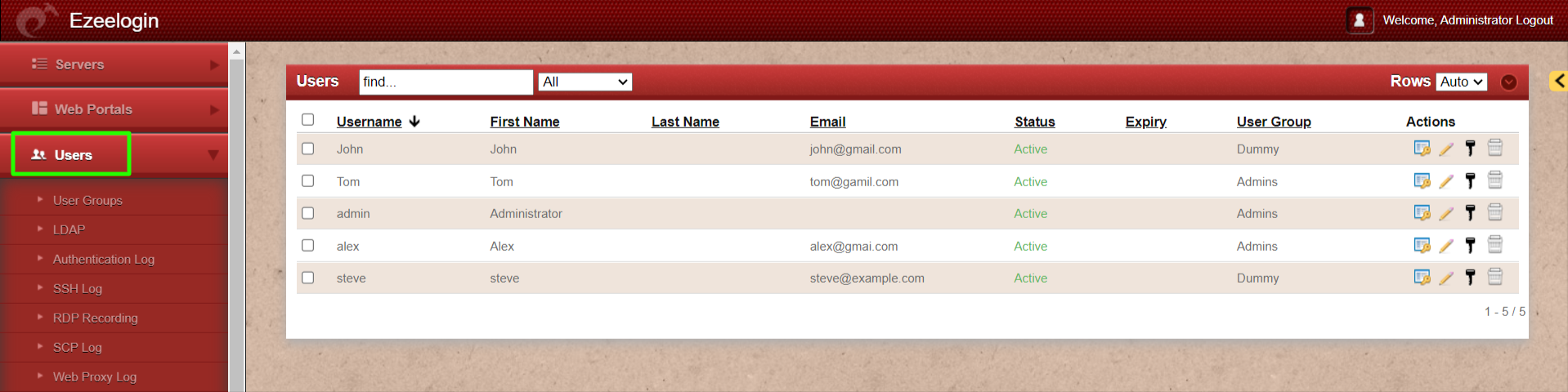

      you can confirm the imported LDAP users were listed in Users  tab in ezeelogin GUI



      Now you can login to ezeelogin with IDM user in ezeelogin GUI


Follow the instructions to configure IDM on backend . Skip STEP 4 if you are configuring backend

  Here we are configure backend using sssd ( System Security Services Daemon) is a system service to access remote directories and authentication mechanisms

Run the following commands to install the sssd packages


yum install sssd sssd-client nscd


Run following command to enable OpenLdap and SSSD


authconfig --enablesssd --enablesssdauth --ldapserver="ldap.example.com" --ldapbasedn="[ldap-base-dn]" --update


Add ldap_search_base,ldap_default_bind_dn,ldap_default_authtok,ldap_uri,default_shell = /usr/local/bin/ezsh, override_shell = /usr/local/bin/ezsh ,domian to /etc/sssd/sssd.conf

   I have used  ipaserver.example.com in this configuration as ldap server
[domain/example]

#autofs_provider = ldap
cache_credentials = True
id_provider = ldap
auth_provider = ldap
#chpass_provider = ldap

ldap_search_base = cn=accounts,dc=example,dc=com
ldap_default_bind_dn = uid=admin,cn=users,cn=accounts,dc=example,dc=com
ldap_default_authtok = zaq1XSW@
ldap_uri = ldap://ipaserver.example.com/
ldap_id_use_start_tls = False
override_homedir = /home/%u
default_shell = /bin/bash
override_shell = /usr/local/bin/ezsh
ldap_tls_reqcert = never

ldap_tls_cacertdir = /etc/openldap/cacerts
[sssd]
services = nss, pam, ssh
domains = example

Restart sssd & nscd service

service sssd restart && service nscd restart


Enable autocreate home directory on login by the following command

authconfig --enablemkhomedir --update


Now run the id / finger command and see whether you are able get LDAP user details


[root@jumpserver ~]# finger marc

Login: marc             Name: Marc c

Directory: /home/marc   Shell: /usr/local/bin/ezsh

Last login Wed Jun 13 05:02 (EDT) on pts/1 from 10.1.1.13

No mail.

No Plan.

[root@jumpserver ~]# id jake

uid=1001(marc) gid=20001(domain users) groups=1547600513(domain users)
