How do i configure Ezeelogin to authenticate using OpenLdap or Window AD server?

1.How do i configure Ezeelogin jump server to authenticate using OpenLdap or Window AD server?

2.How do I configure SSH gateway to authenticate from LDAP or Windows AD server?



This video shows how to configure LDAP authentication for the webpanel with the Auto Create feature.

With the AutoCreate feature, the backend ssh authentication would not be using PAM-LDAP , instead it would a create a system user in the shell and would then be using system authentication for the backend authentication.

The advantage in using AutoCreate feature is that the you would not have to configure LDAP in ssh or modify your existing Active Directory attirbutes or OpenLDAP attributes.

Do read more about the drawbacks,  since the ssh authentication would not be via LDAP,here

Make sure that PHP-LDAP extension is installed on the server

root@jumpserver:~# apt-get install php5-ldap/php7-ldap/php-ldap (ubuntu 14/16/18)

root@jumpserver:~# yum install php-ldap ; apachectl restart (centos6/7)





Integration of OpenLdap in ezeelogin jumpserver (Import openldap user to ezeelogin jumpserver)



1.  Login to Web-GUI > open settings > Ldap

      Add the details in LDAP setting page.Check the following video to fill and configure LDAP



      Add the details of LDAP configurations





 2  .open Settings > General Settings > Authentication > Change webpanel authentication to Ldap



3.  Open Settings > General settings > Security > Check Auto Create user



4. Select the LDAP users and import to ezeelogin

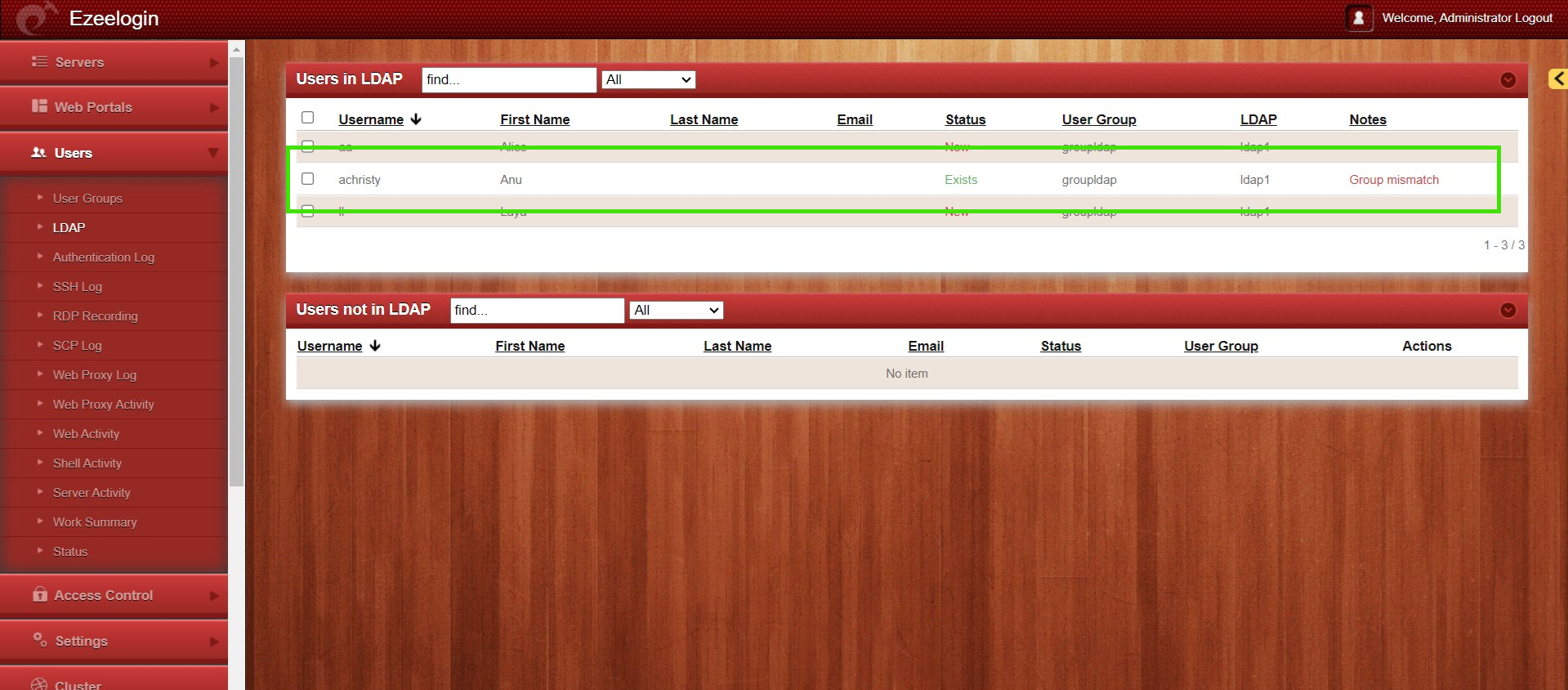

you can confirm the imported LDAP users were listed in Users



Now you can login to ezeelogin with ldap user in ezeelogin GUI





Integration of Windows AD in ezeelogin(Import Windows Ad user to jumpserver)





1.  Login to Web-GUI > open settings > Ldap

      Add the details in LDAP setting page.Check the following video to fill and configure LDAP





       Add the details of LDAP configurations & Check the WINDOWS ACTIVE DIRECTORY





 2. open settings > general  > Authentication > change webpanel authentication to Ldap



3. Open Settings >General > security >Check Auto Create User



4. Select the LDAP users and import to ezeelogin







     you can confirm the imported LDAP users were listed in Users



     Now you can login to ezeelogin with ldap user in ezeelogin GUI
