How to integrate keycloak with Ezeelogin Jumpserver?

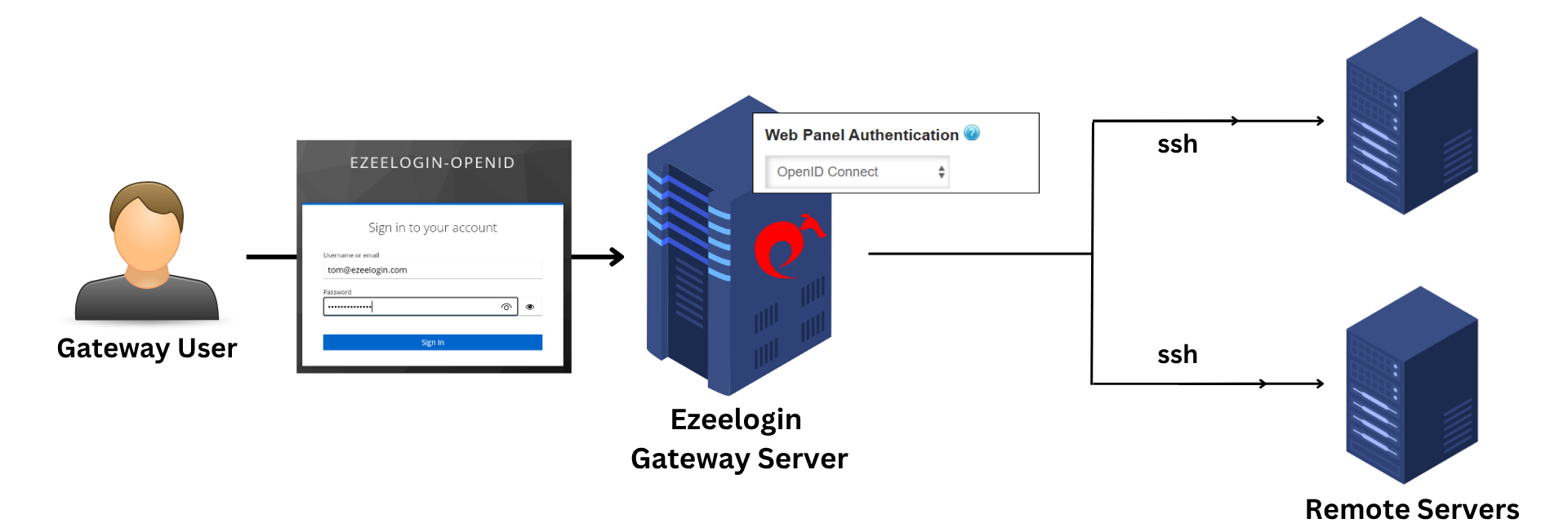

Overview: This article will help the super admin user to integrate keycloak openid with the Ezeelogin jump server.

Step 1: Install the latest Keycloak server.

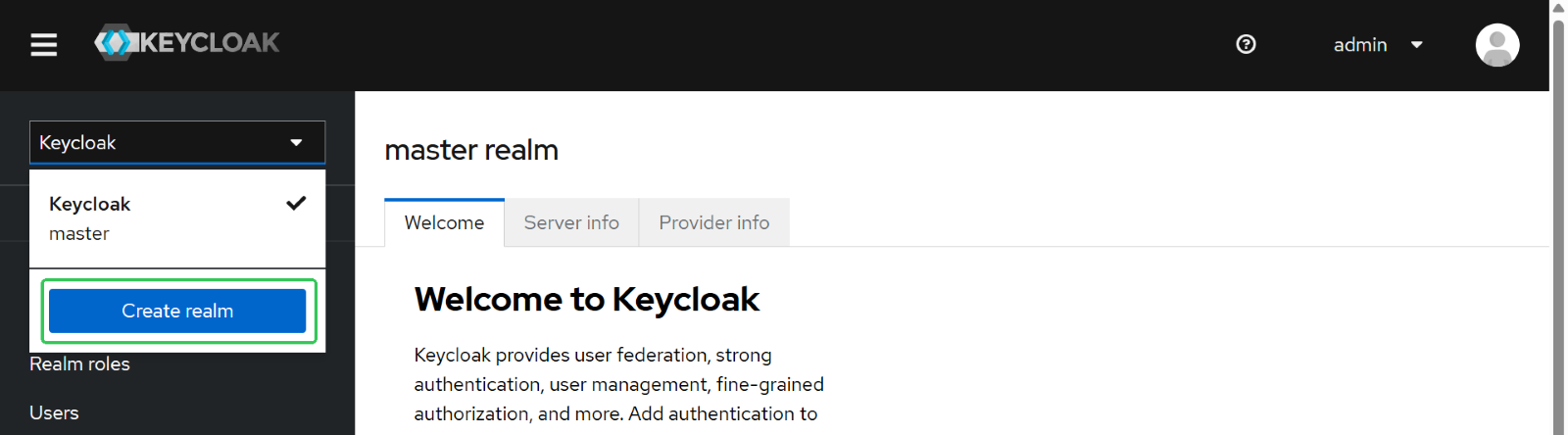

Step 2: Click on Create realm.

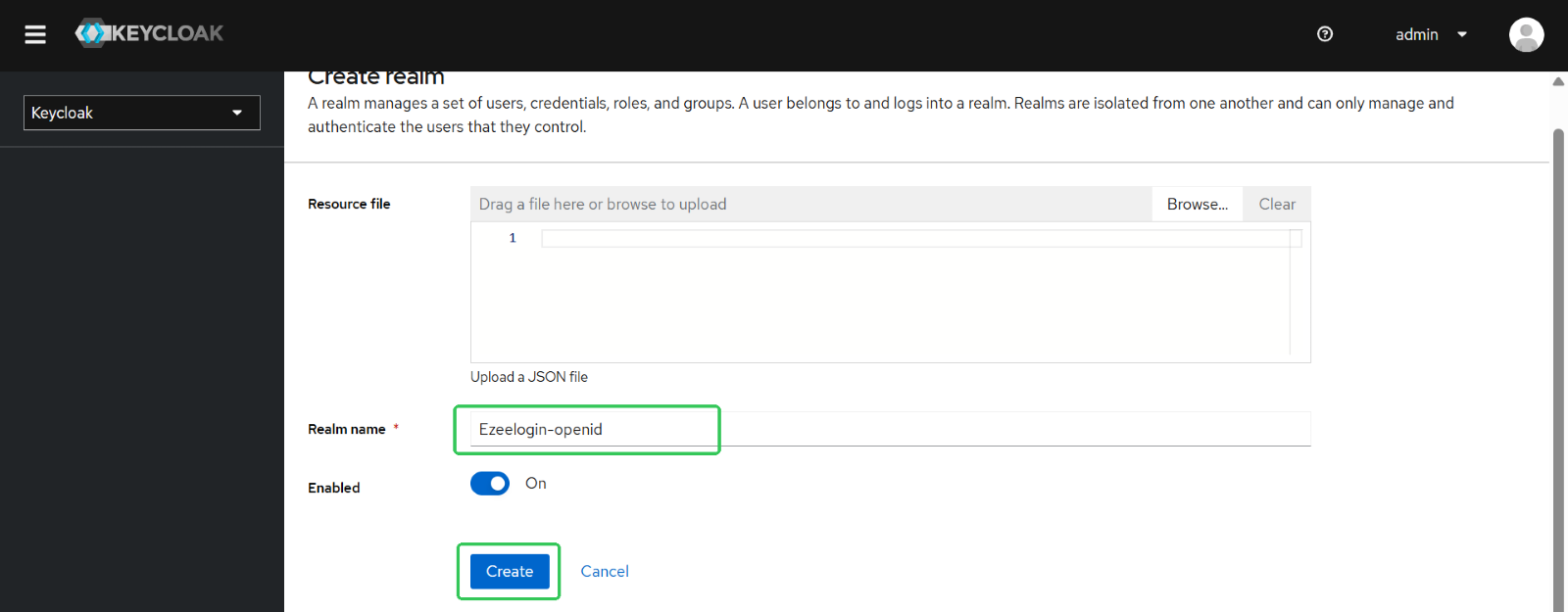

Step 2(A): Enter the Realm name and click on Create.

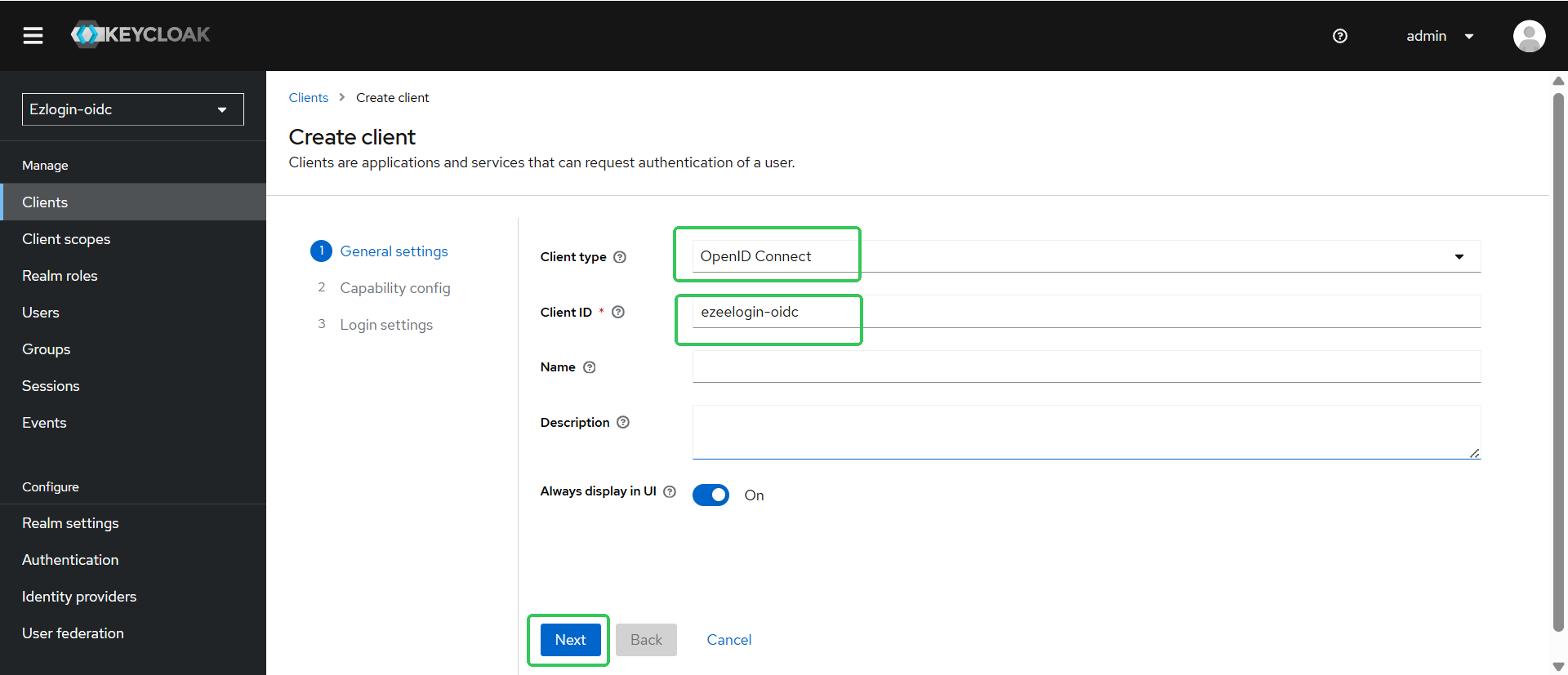

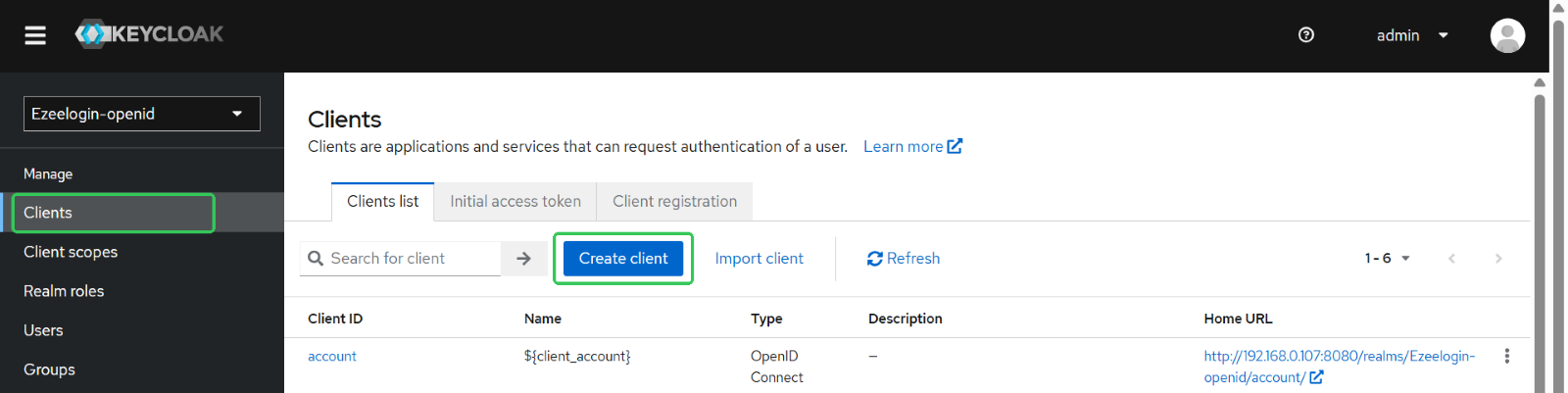

Step 3: Click on Create client -> Enter client type(openid) and client id(eg- ezeelogin-sso) ->Next

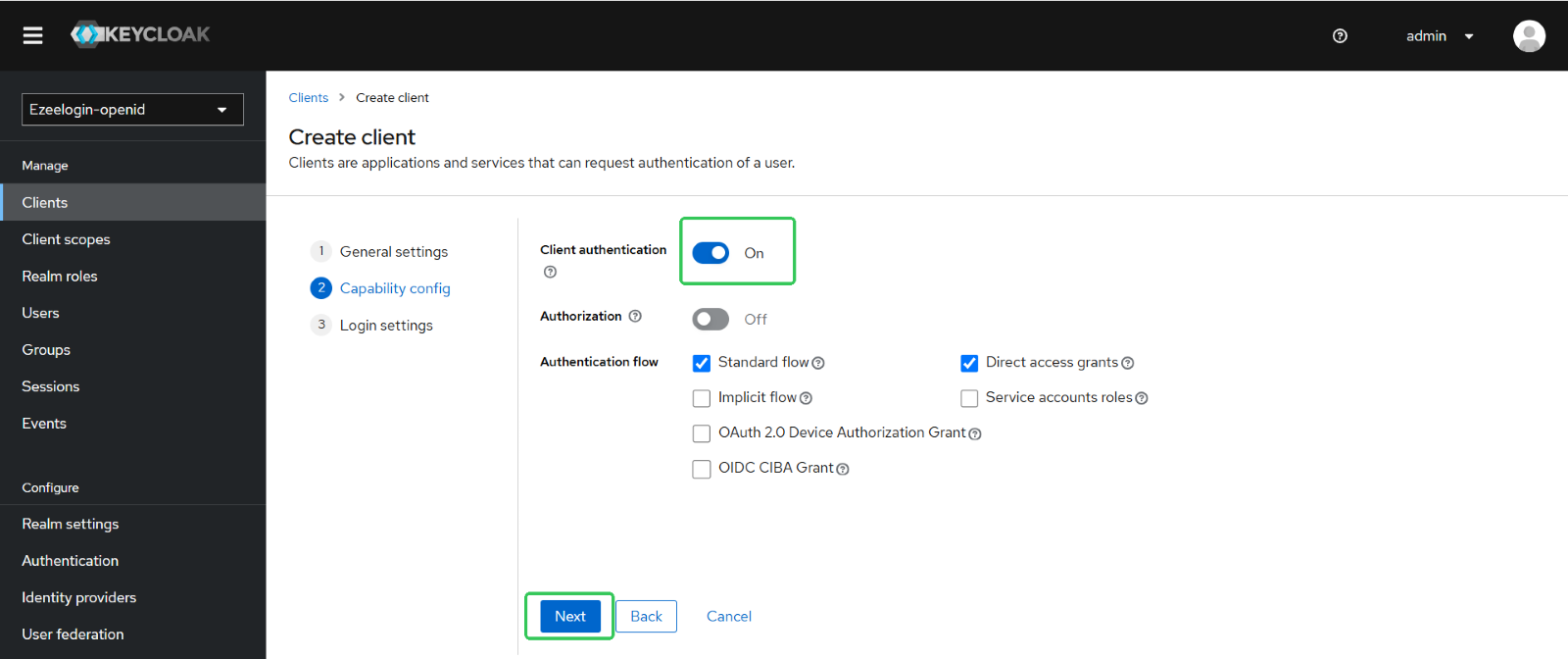

Step 3(A): Enable client authentication -> Next.

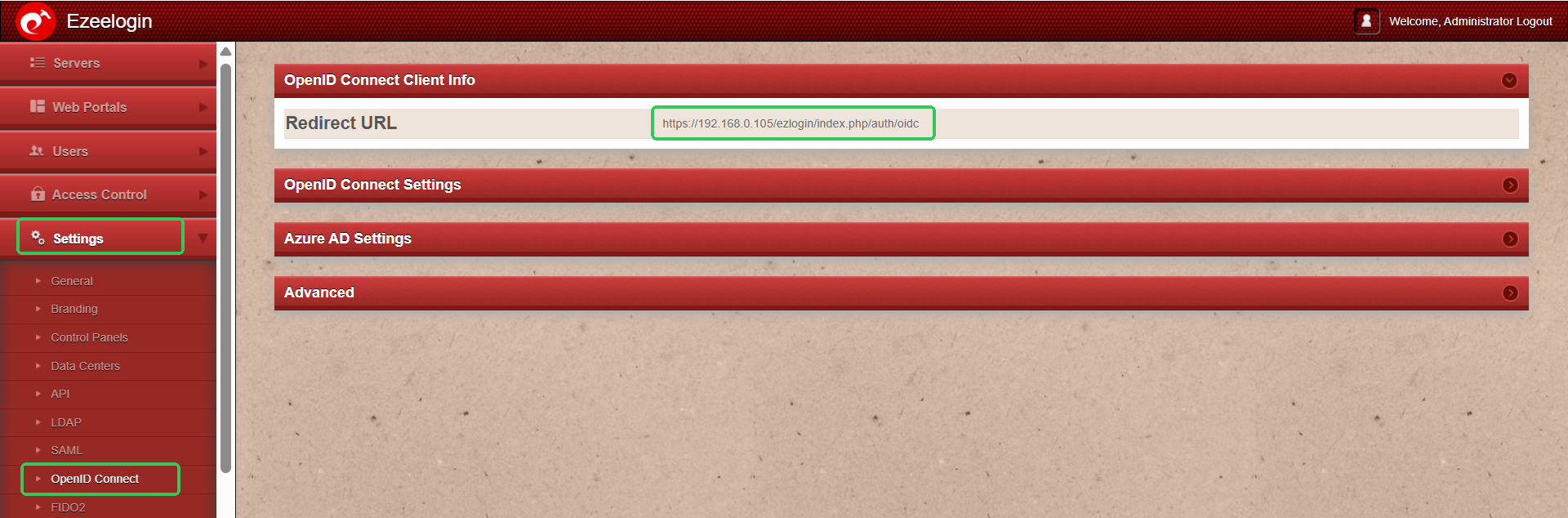

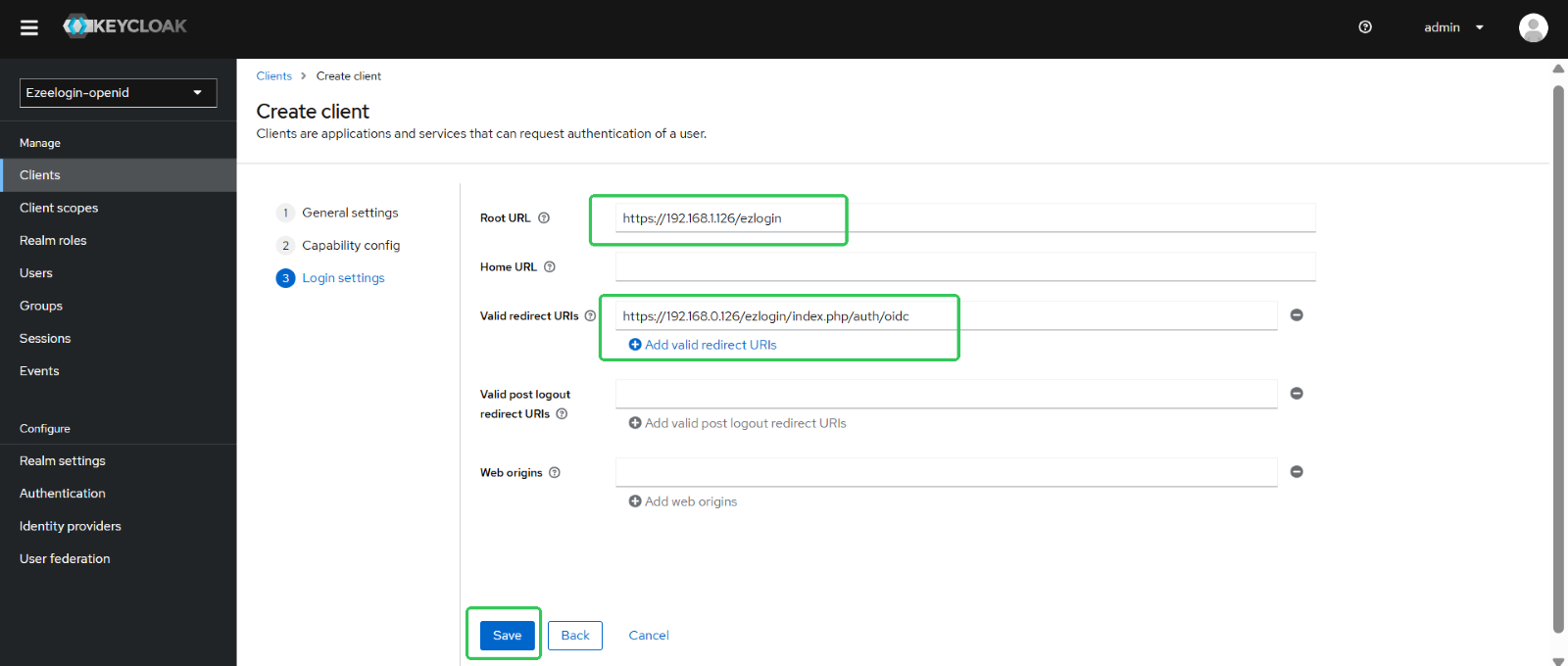

Step 3(B): Enter Root URL(eg:https://192.168.1.4/ezlogin) -> Valid redirect URIs(copy paste from ezeelogin settings) -> Save it.

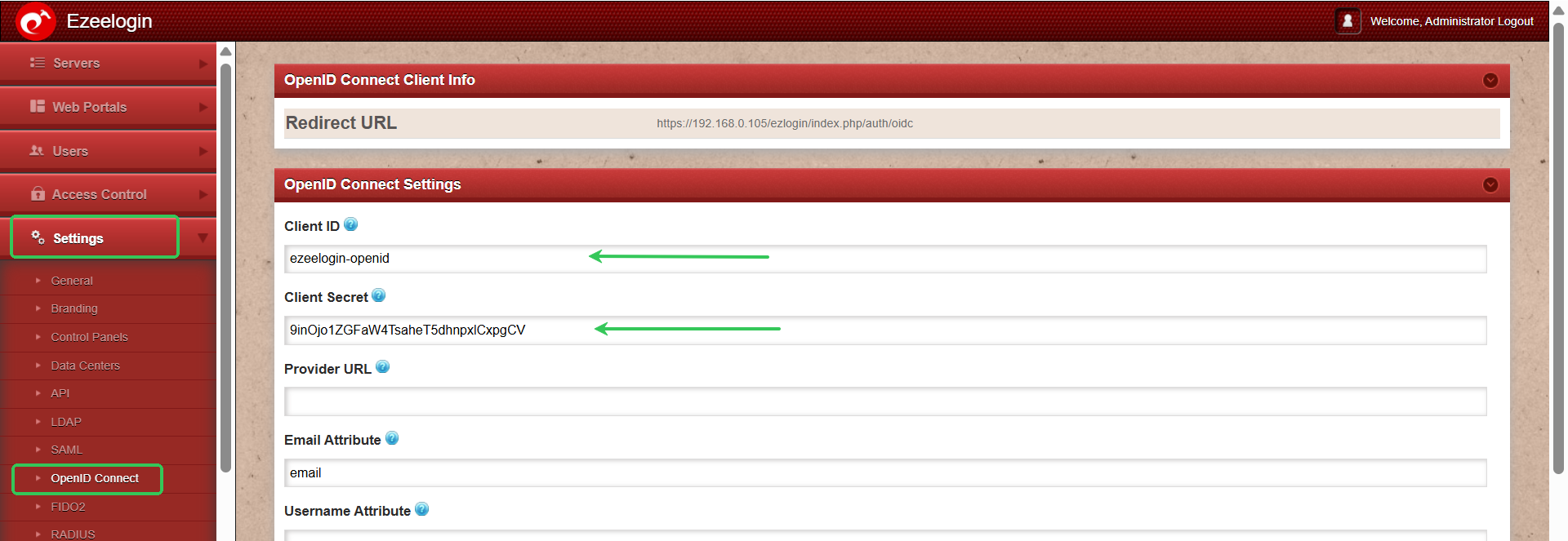

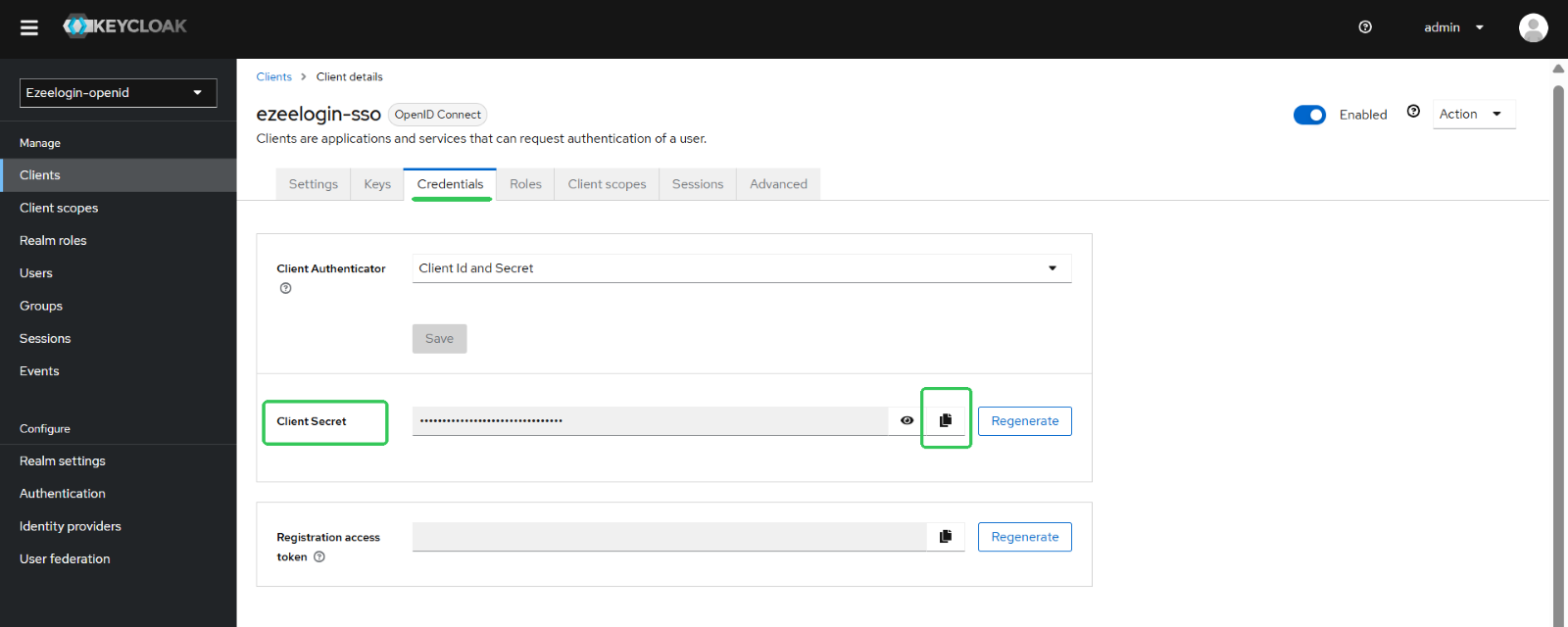

Step 4: Click on Clients (in the same section after saving client) -> Credentials tab -> copy Client Secret and paste it in ezeelogin gui.

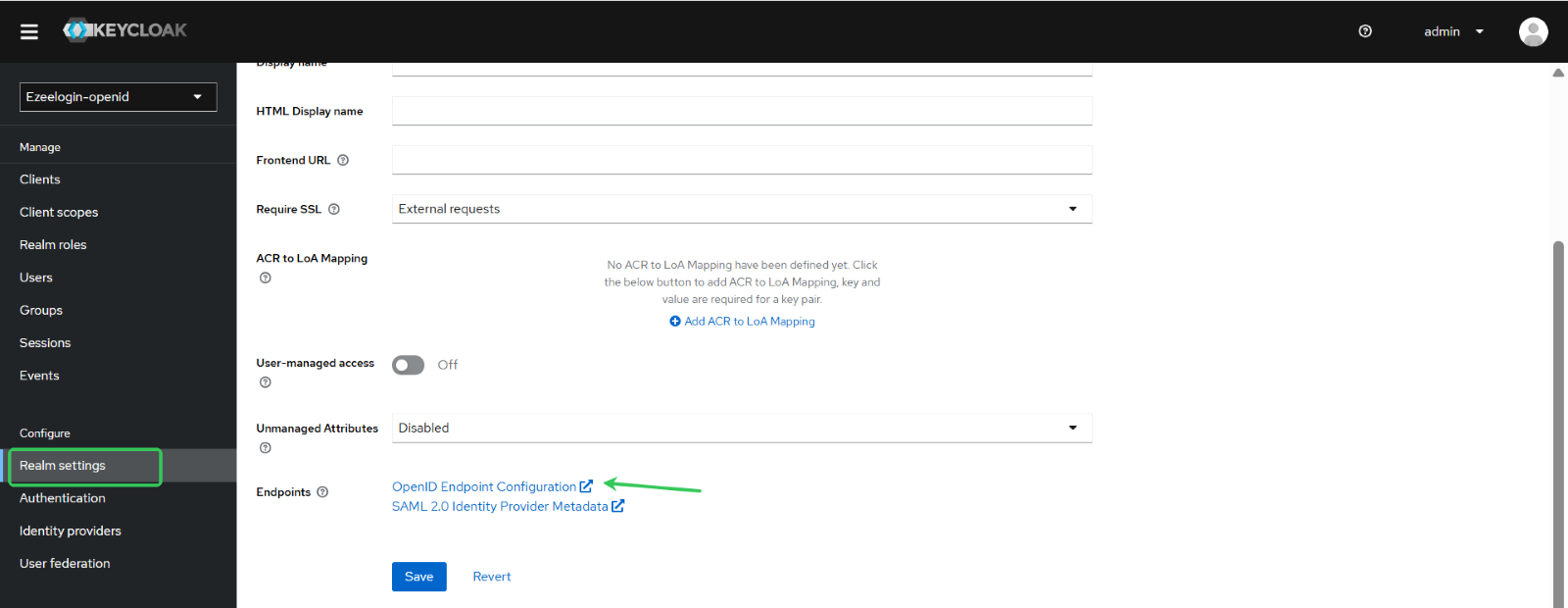

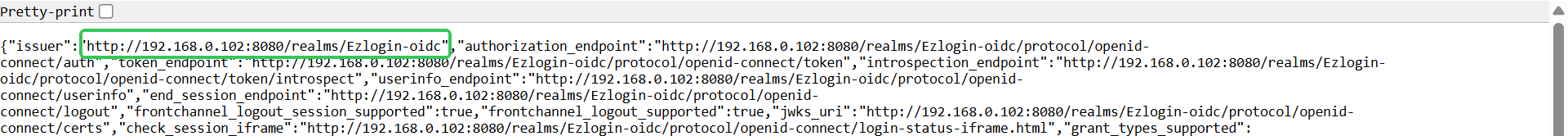

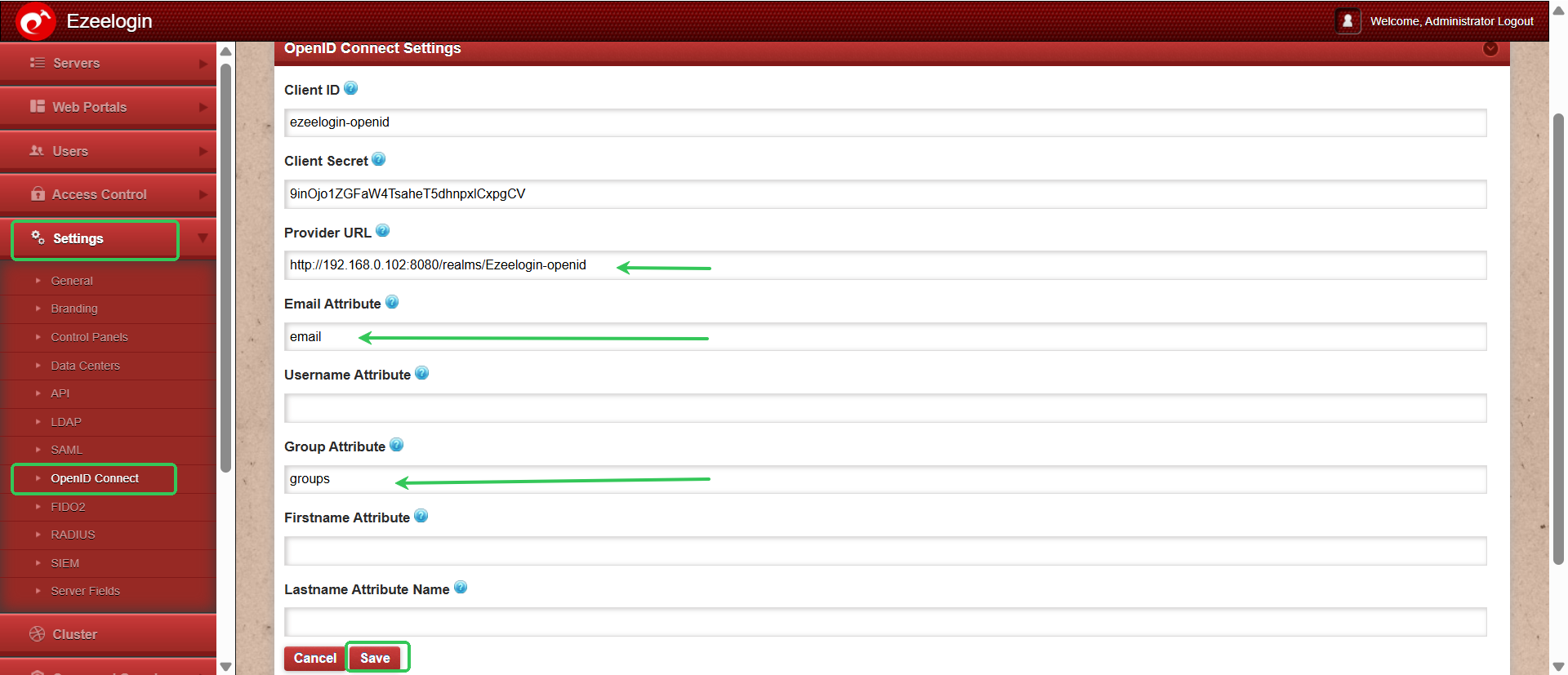

Step 5: Under Realm settings -> Endpoints-> click on the openid endpoint configuration url -> copy issuer url and paste in ezeelogin gui under provider url and provide the attribute values -> save it.

Step 6: Create client scope for groups if it not exist in client scopes.

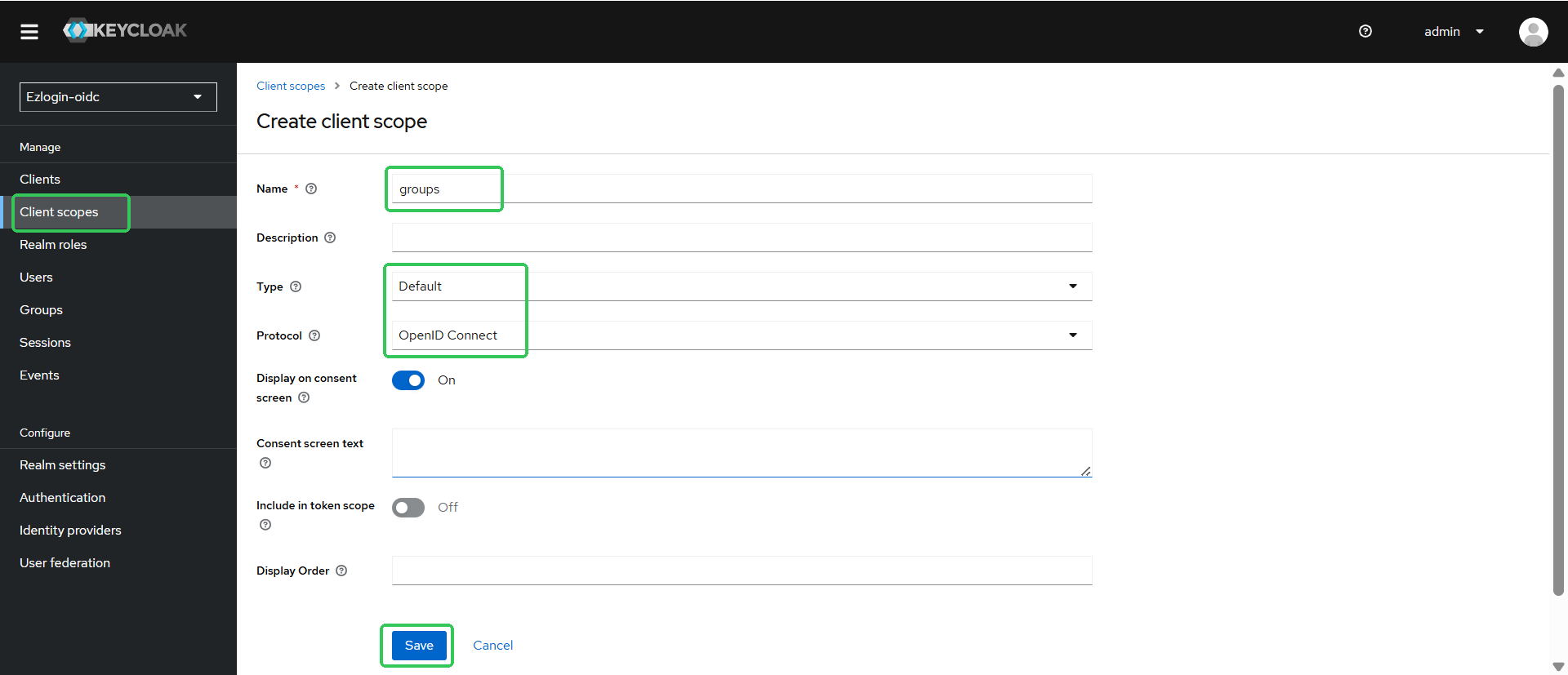

Click on Client scopes --> create client scope -> Enter the name and type --> mention the Protocol(OpenID Connect) -> save it.

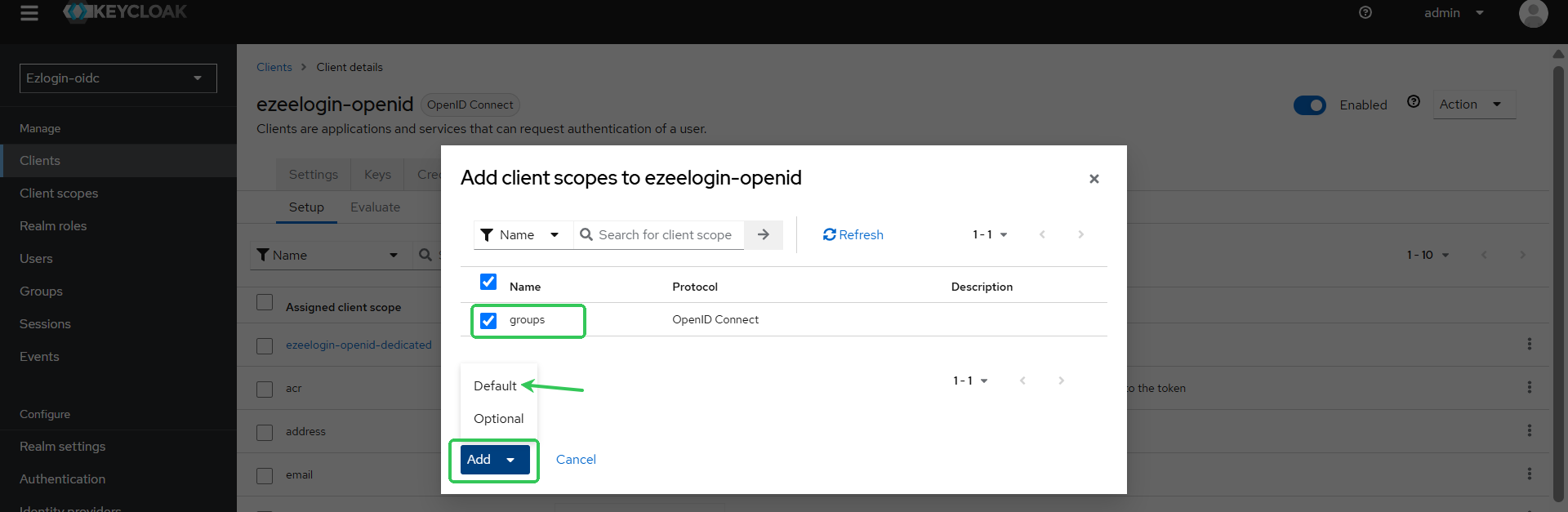

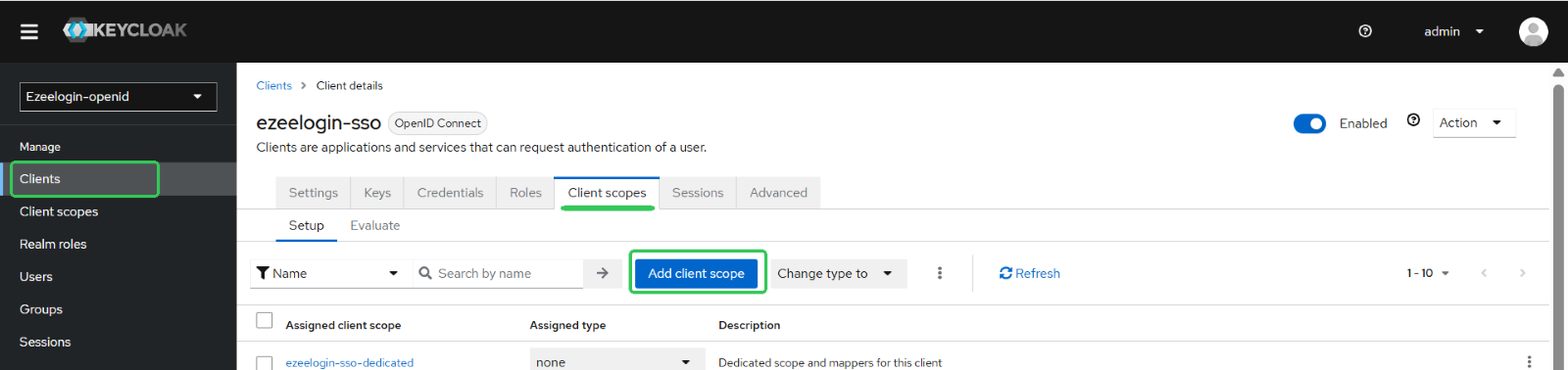

Step 7: Under Clients tab -> select client -> Client scopes -> Add client scope -> select groups scope and add it .

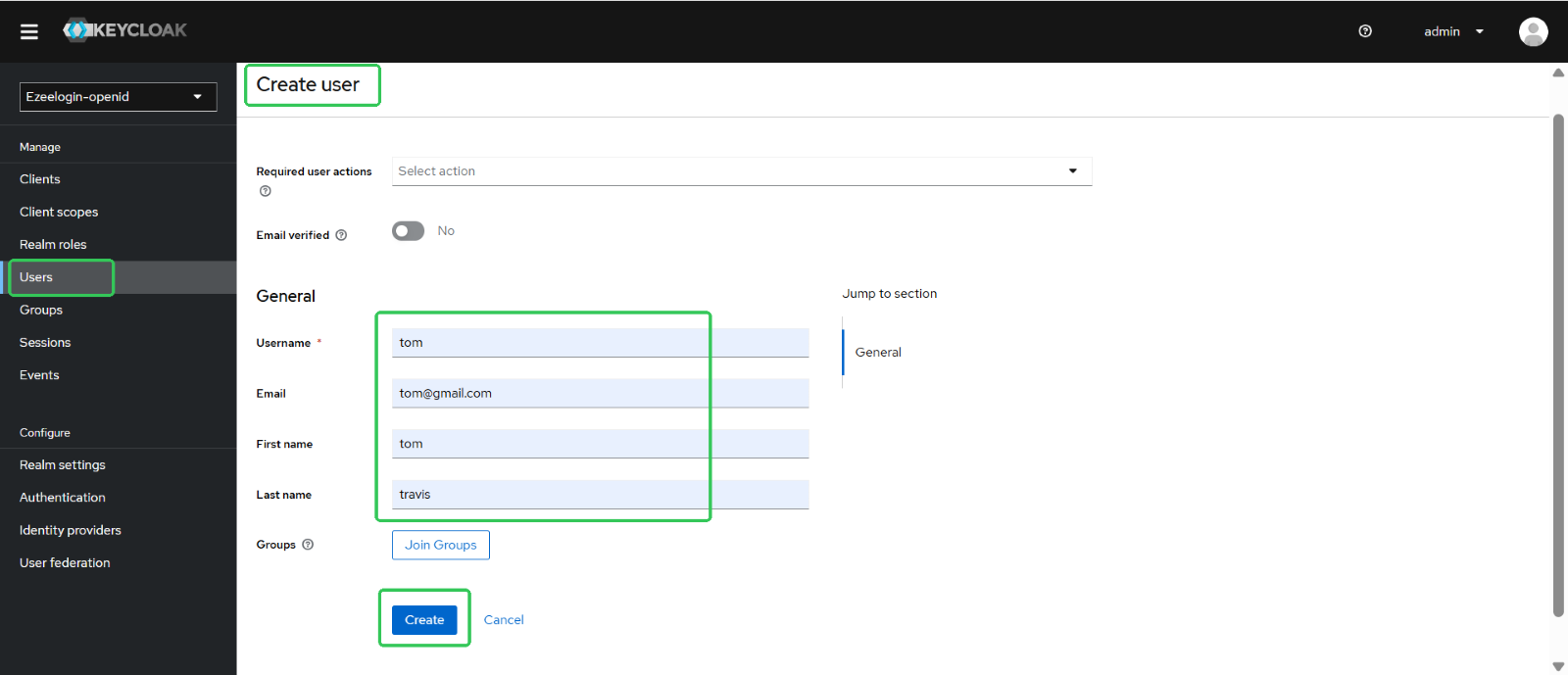

Step 8: Click on Users tab -> add user -> provide Username, Email, Firstname and Lastname -> Create. Click on Credentials tab and set the password for the user(disable temporary).

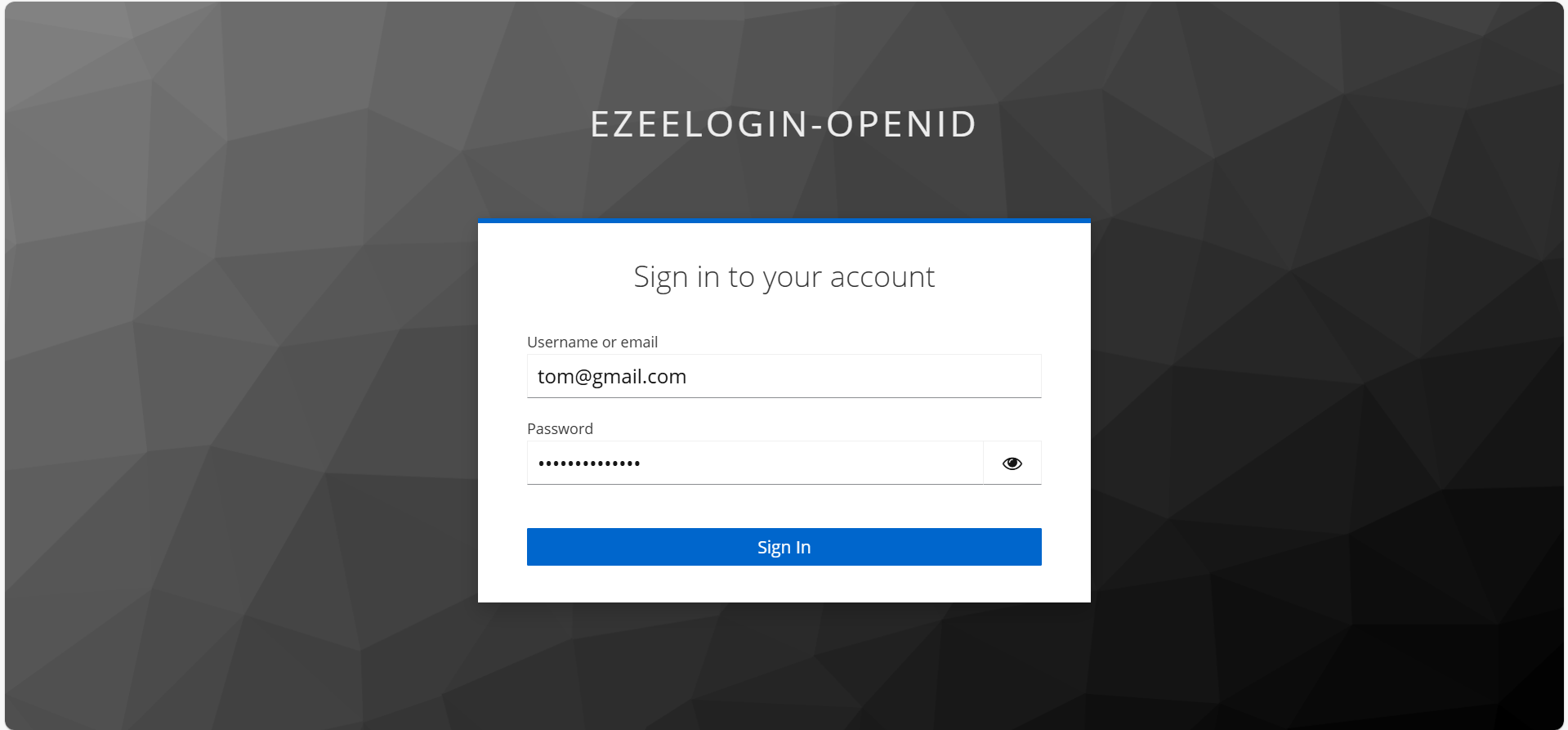

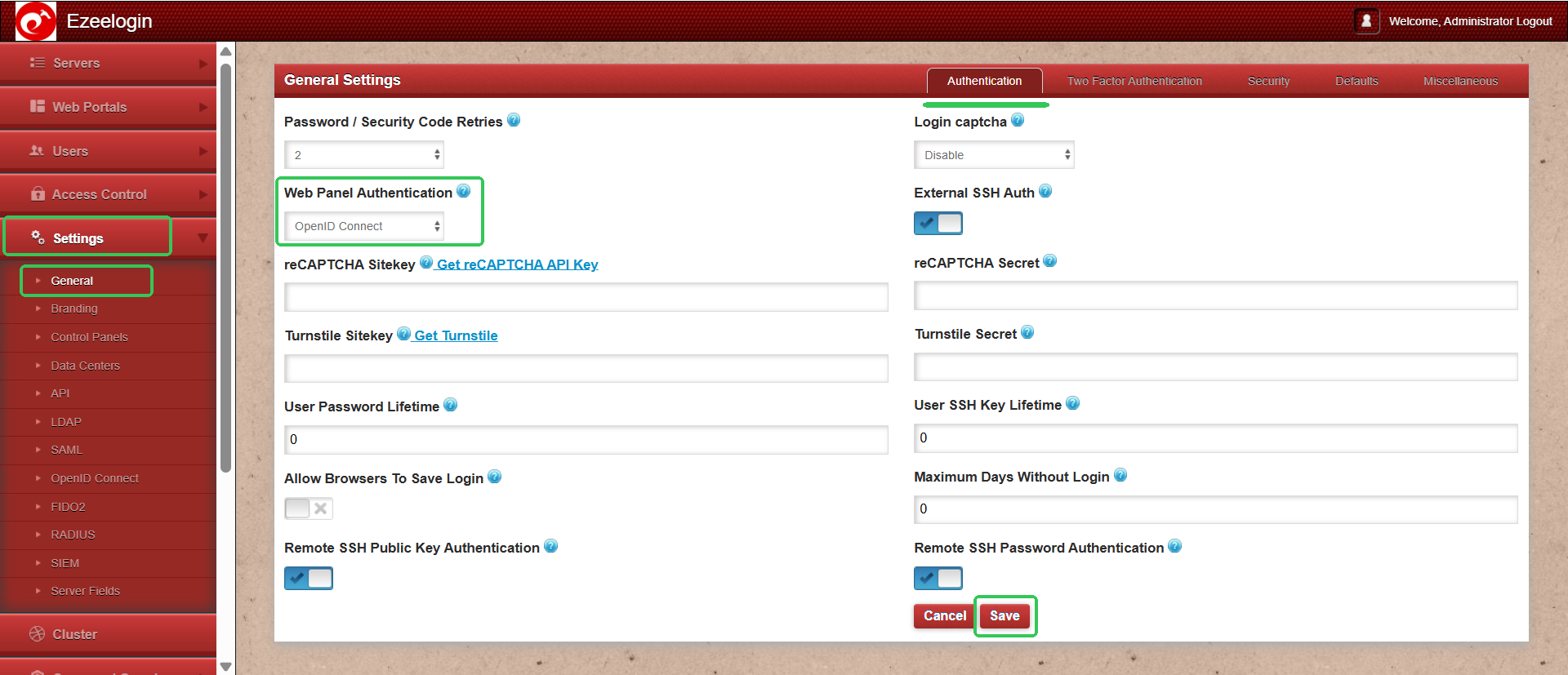

Step 9: Now change auth type in ezeelogin to OpenID Connect and login.

How to map a user from keycloak OpenID Connect user group to Ezeelogin user group?

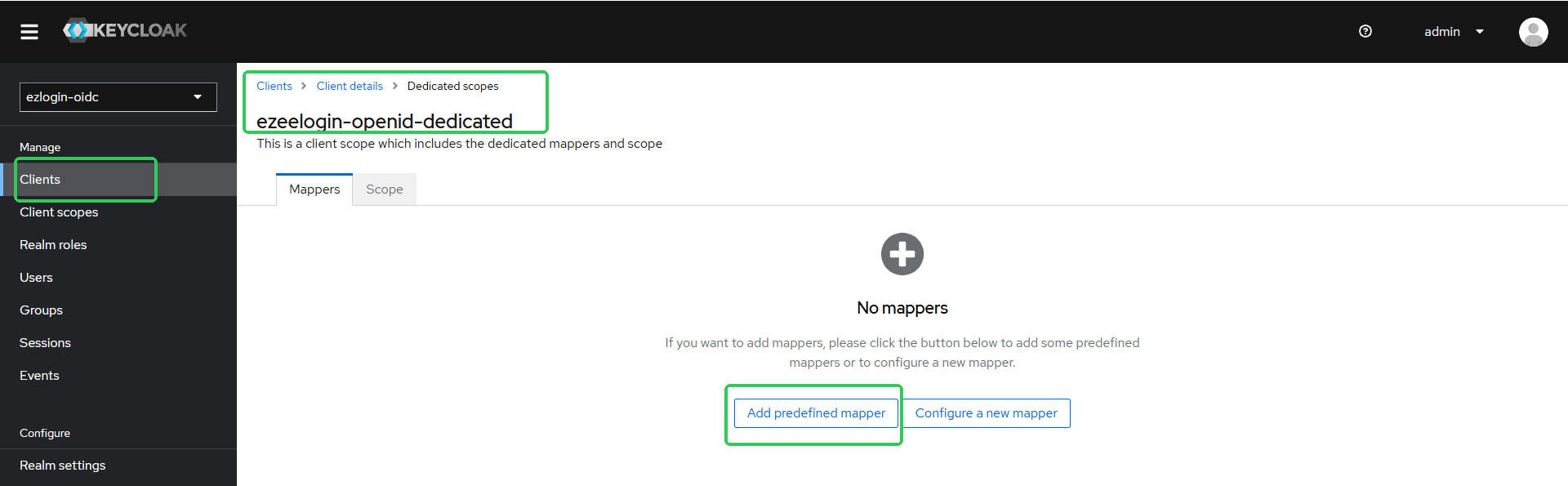

Step 1: Click on Clients > Select the clients > Click on Add predefined mapper.

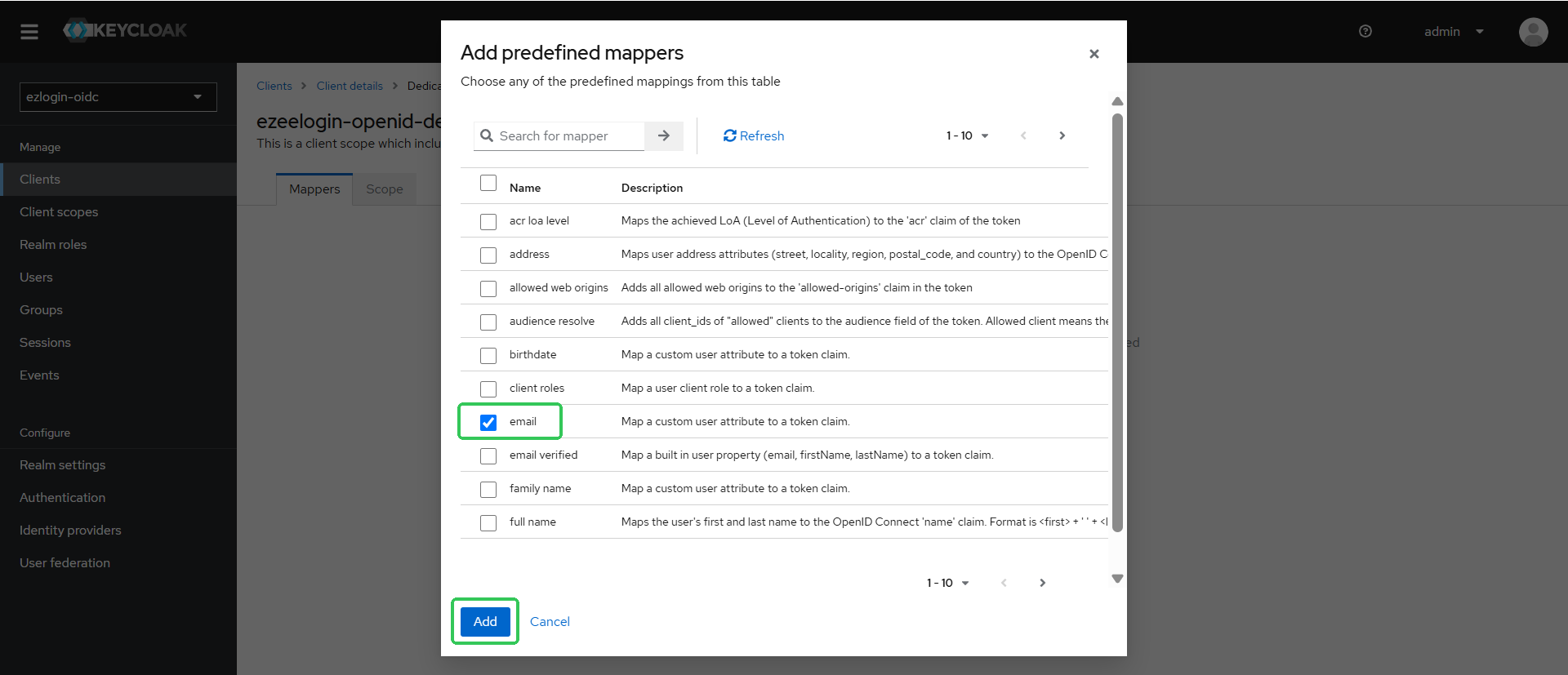

Step 1(A): Click on email and Add it.

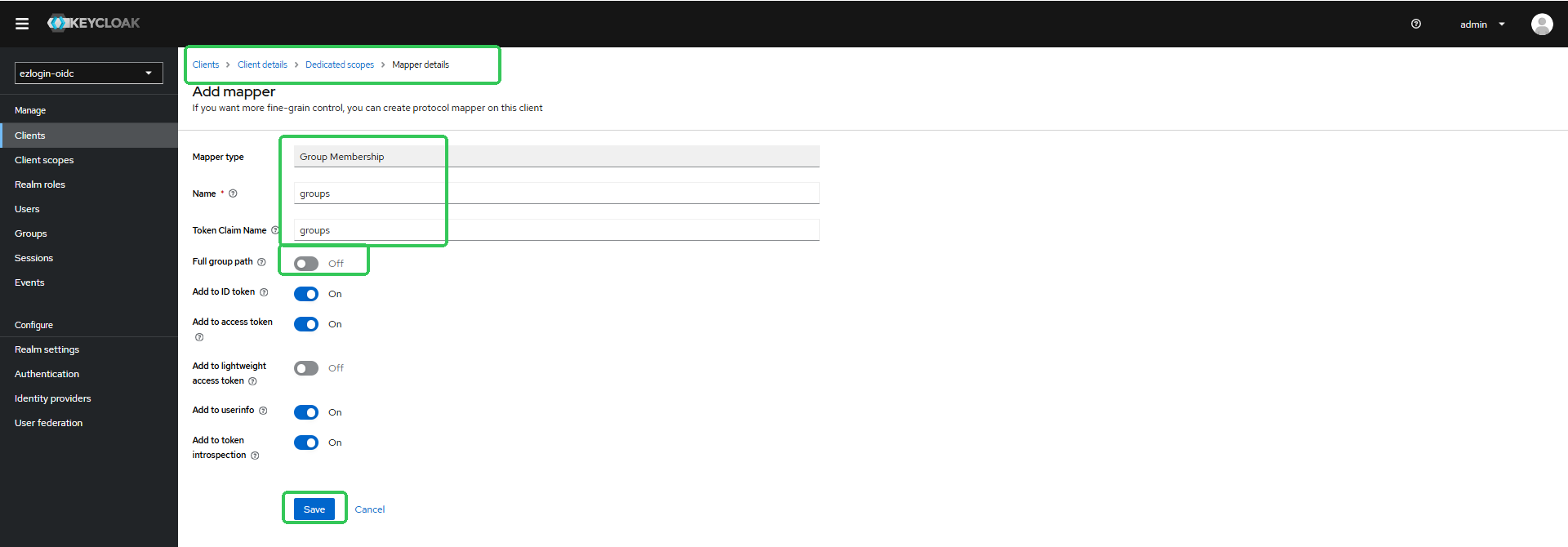

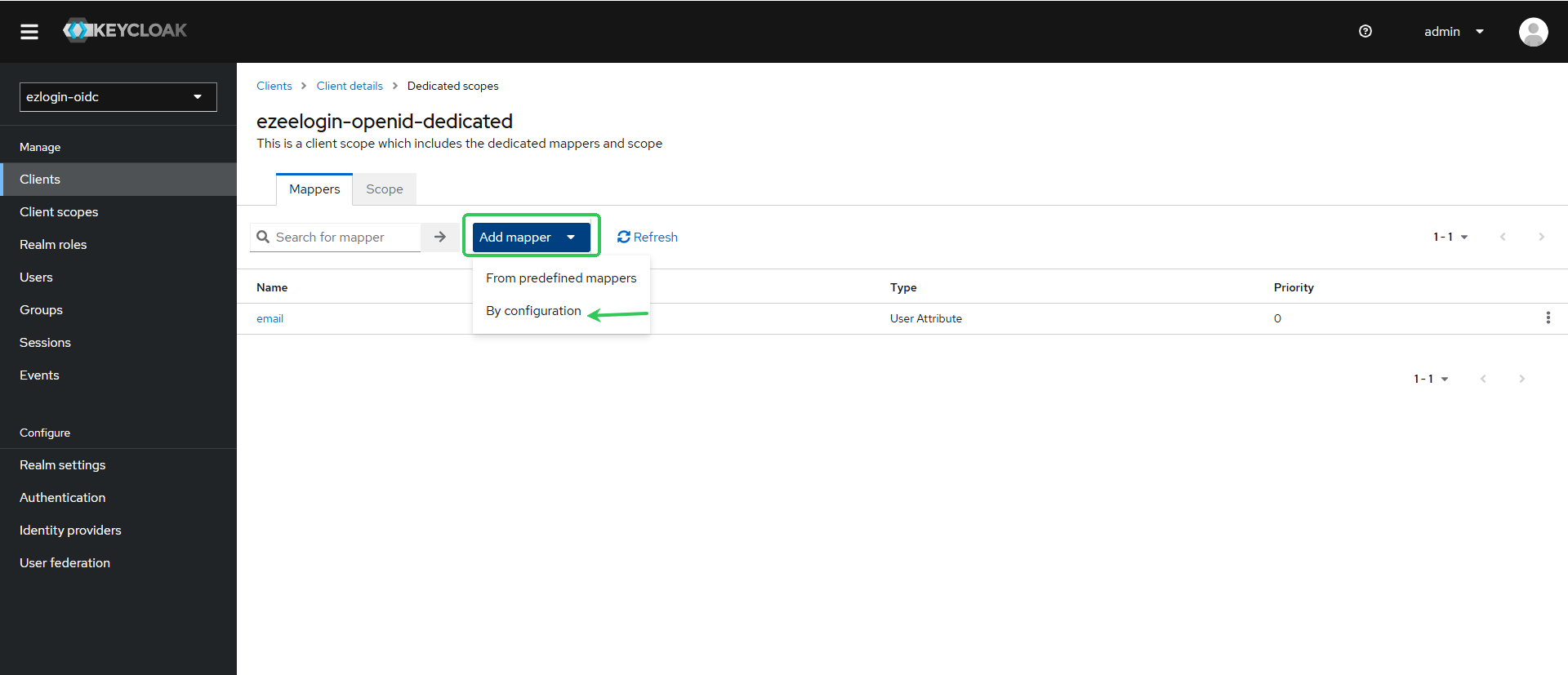

Step 2: Add mapper > Click on By configuration > select By Configuration option( Group Memebership )

Step 2(A): Add the Name and Token Claim Name and disable Full group path and Save it.

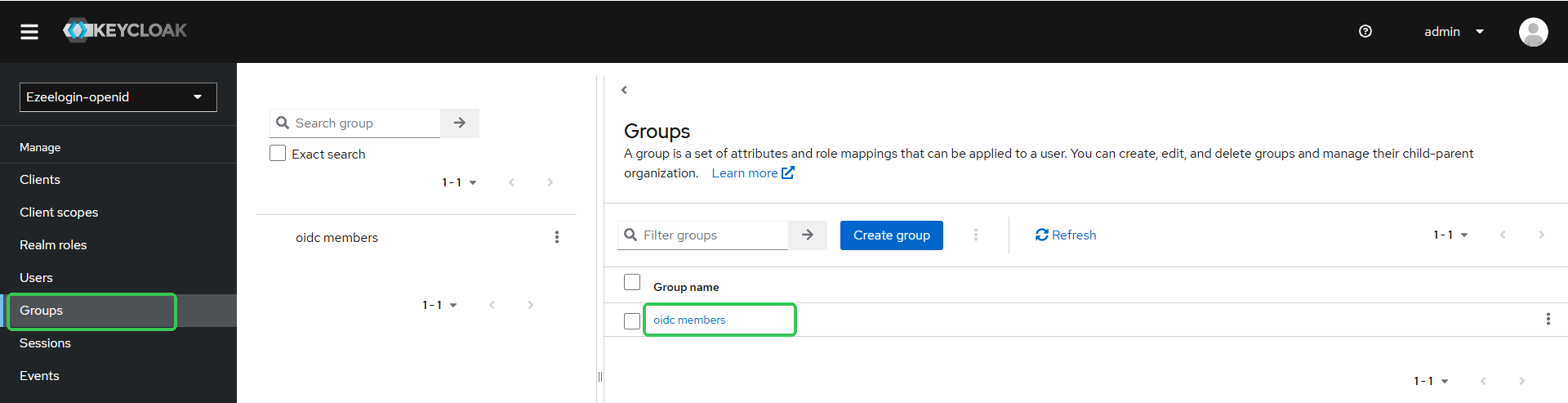

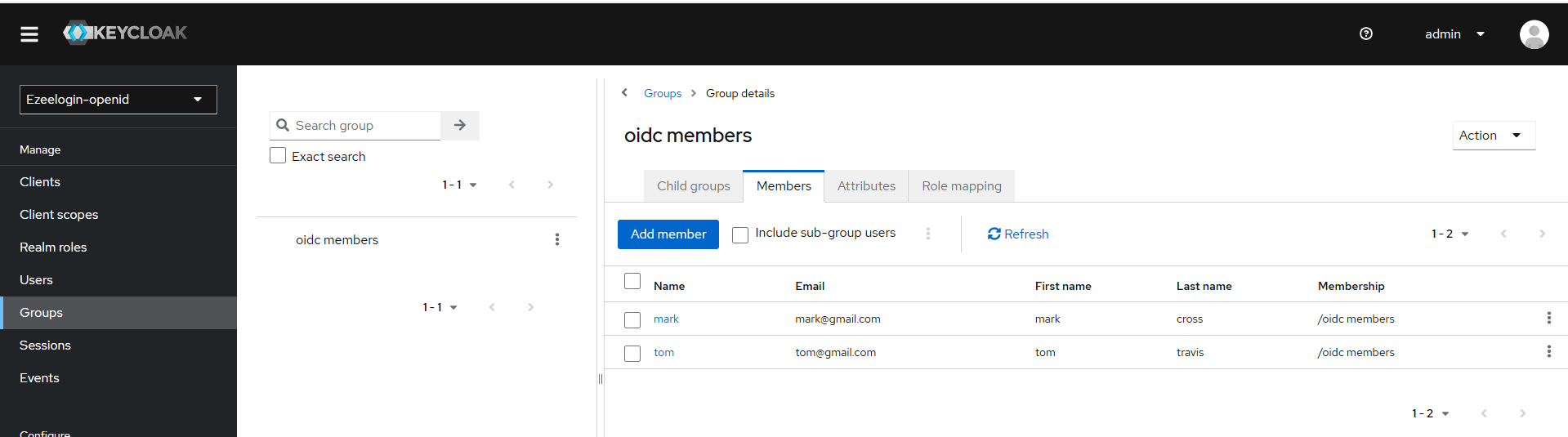

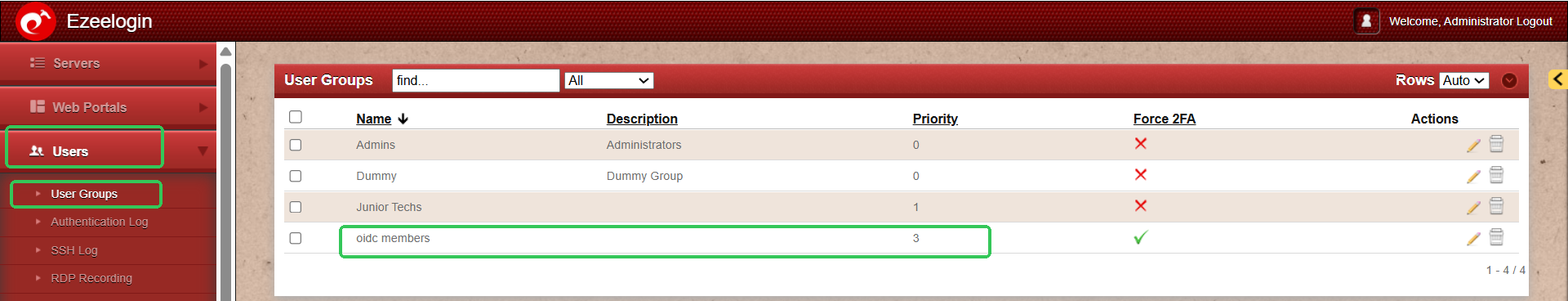

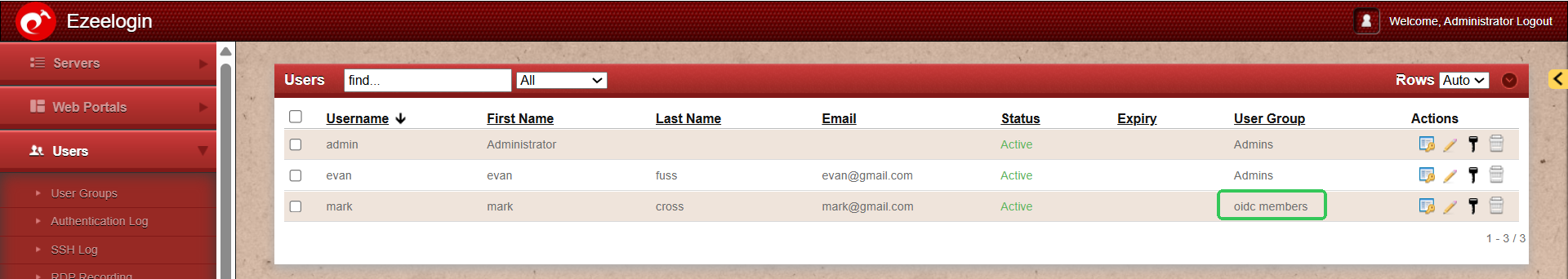

Step 3: Create the same user group in Ezeelogin as in Keycloak by setting the group priority. And add those keycloak users in same group.

Step 4: Now try to relogin and confirm the group map.
