Integrate keycloak SSO with Ezeelogin

How to integrate keycloak with Ezeelogin

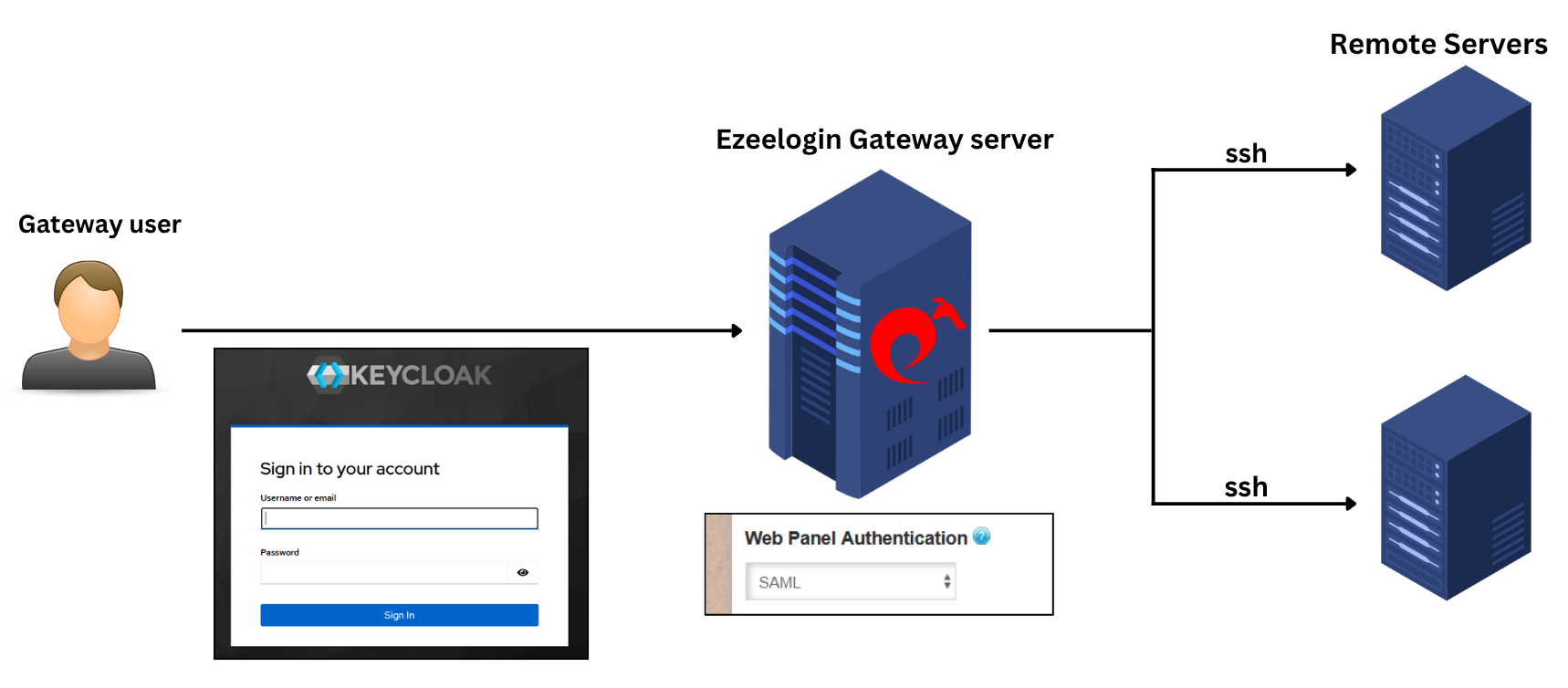

Overview: This article will help to integrate keycloak sso with the Ezeelogin jump server.

Step 1: Install the latest Keycloak server.

Step 2: Click on Create realm.

Step 2(A): Enter the Realm name and click on Create.

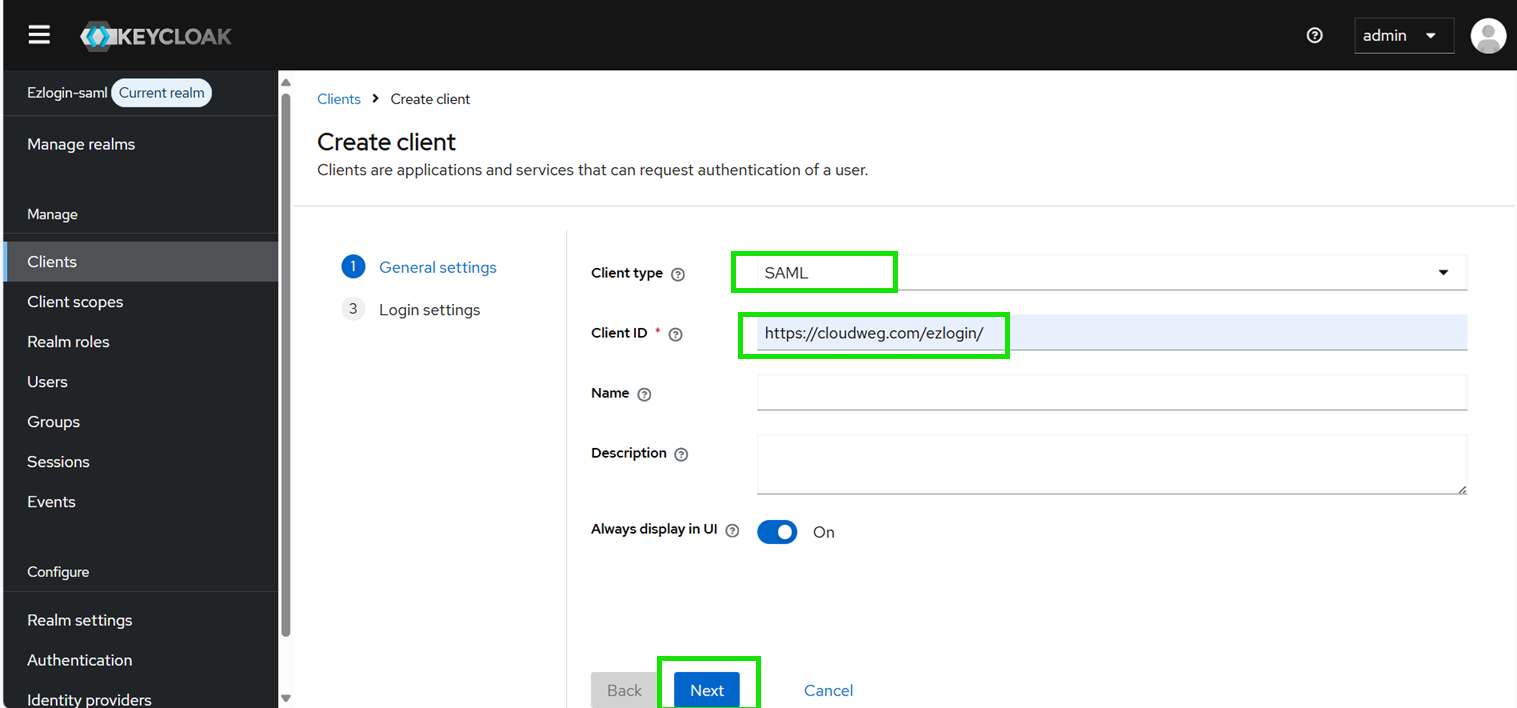

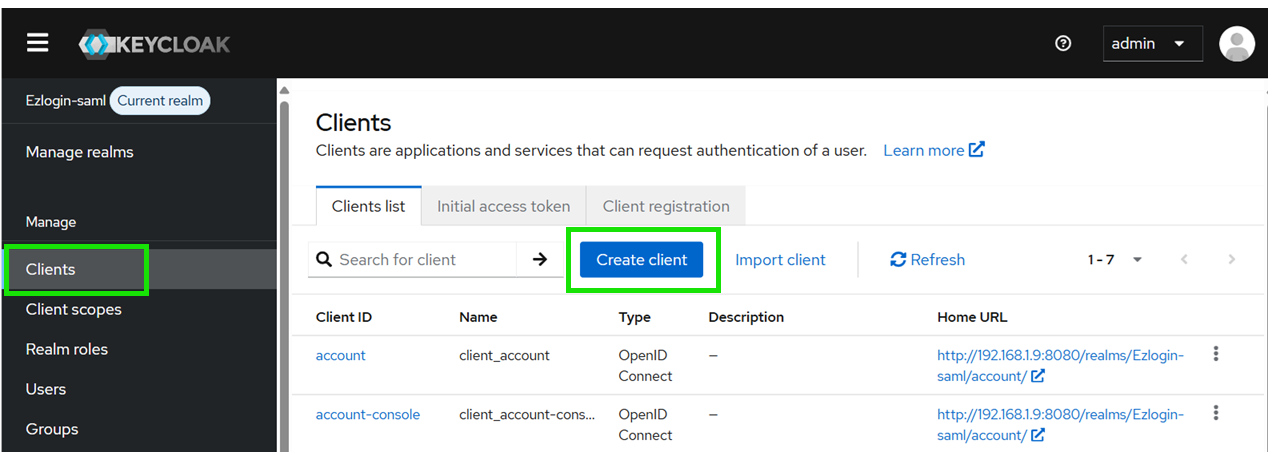

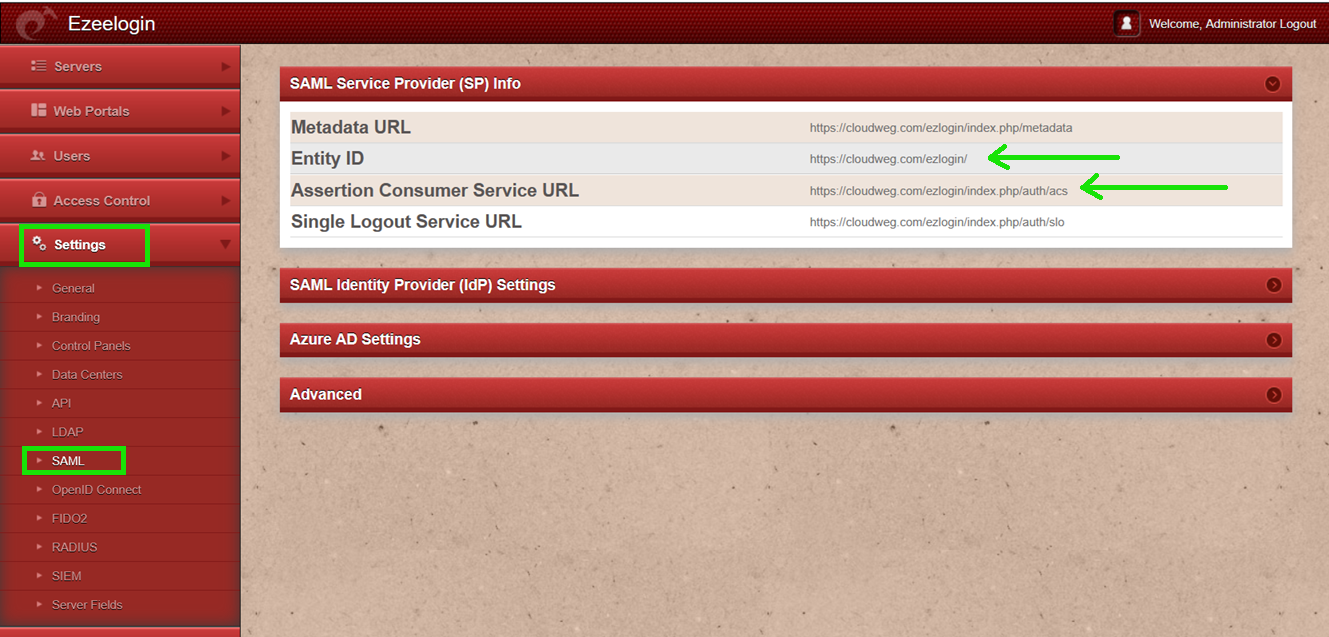

Step 2(B): Create client. Go to clients and click on create client -> Enter client type(saml) and client id(Entity ID from Ezeelogin GUI under settings -> SAML) -> Next

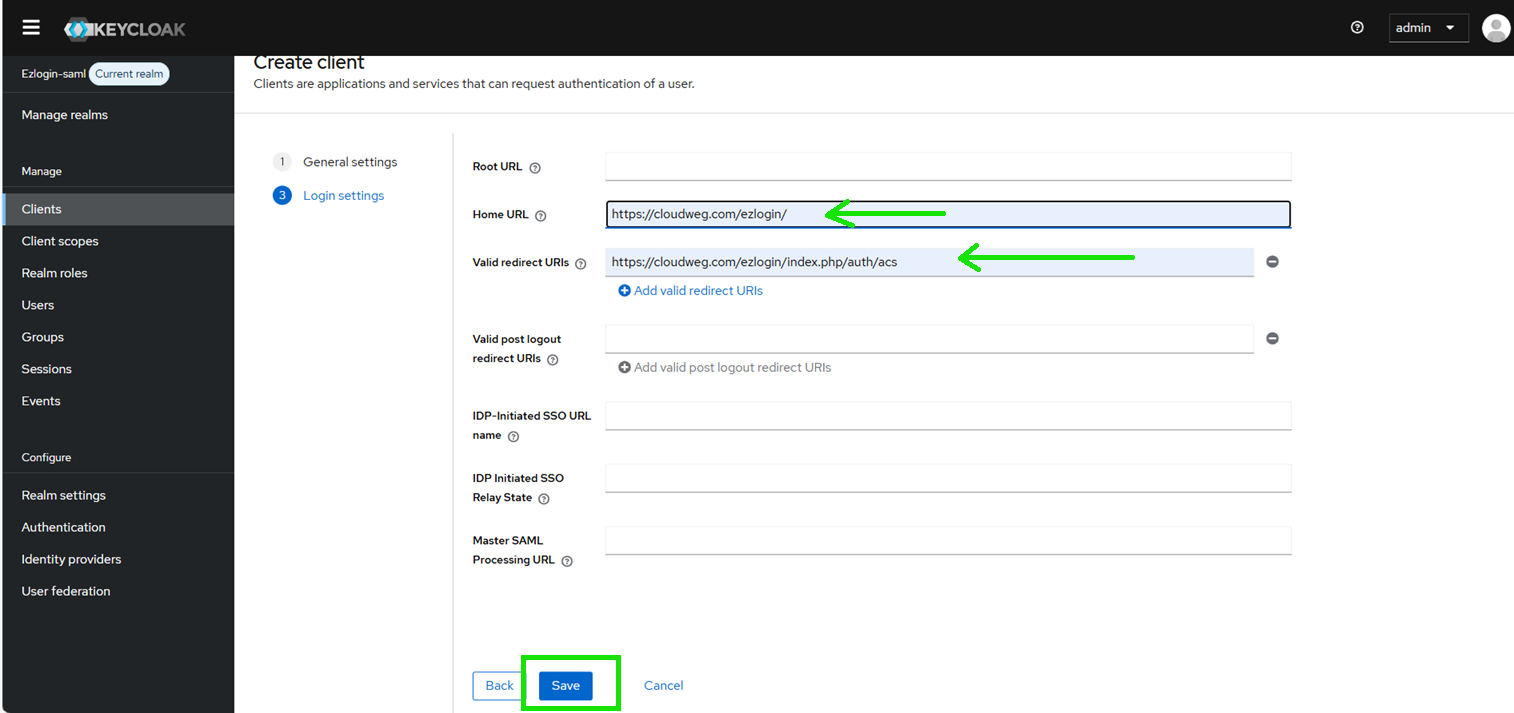

Step 3: Enter Home URL(Copy paste the Entity ID from Ezeelogin GUI), Valid redirect URIs(copy paste Assertion Consumer Service URL from Ezeelogin SAML settings) -> Save it.

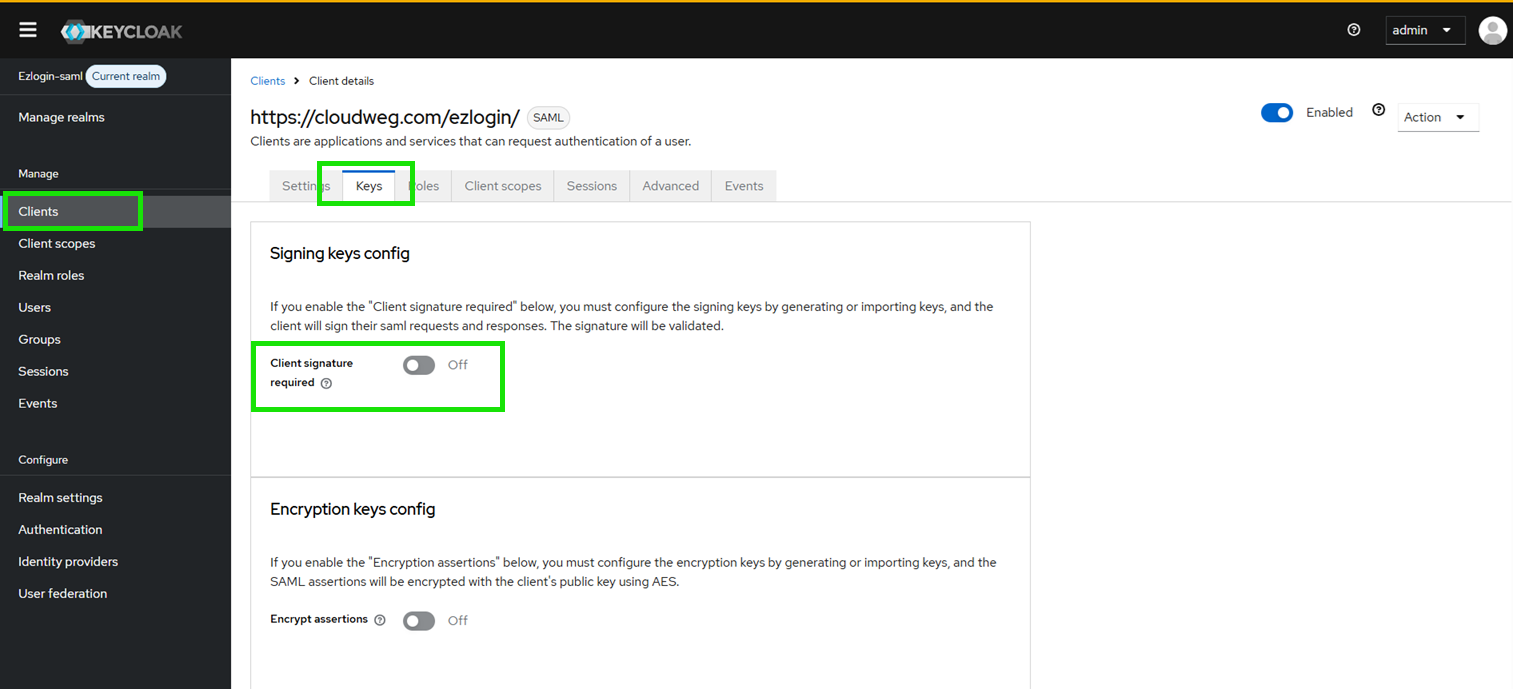

Step 3 (A): Disable Client Signature required from Keys .

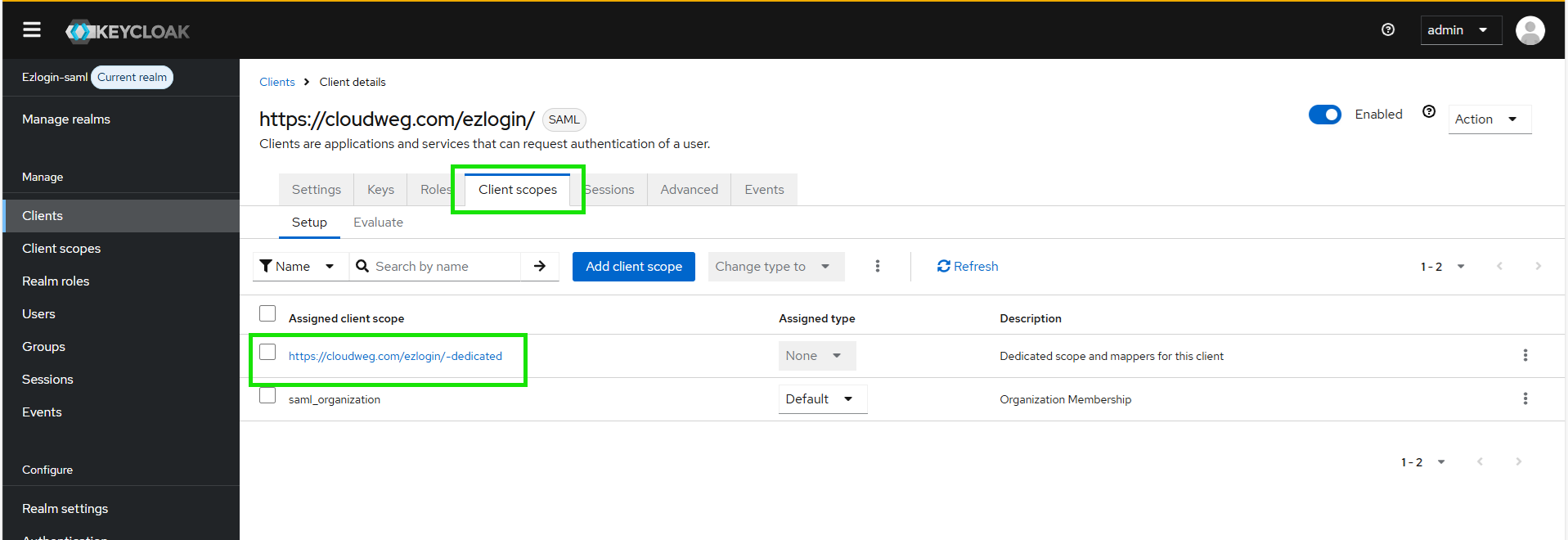

Step 3(B): Add mappers. Go to client scope  and select the assigned client scope

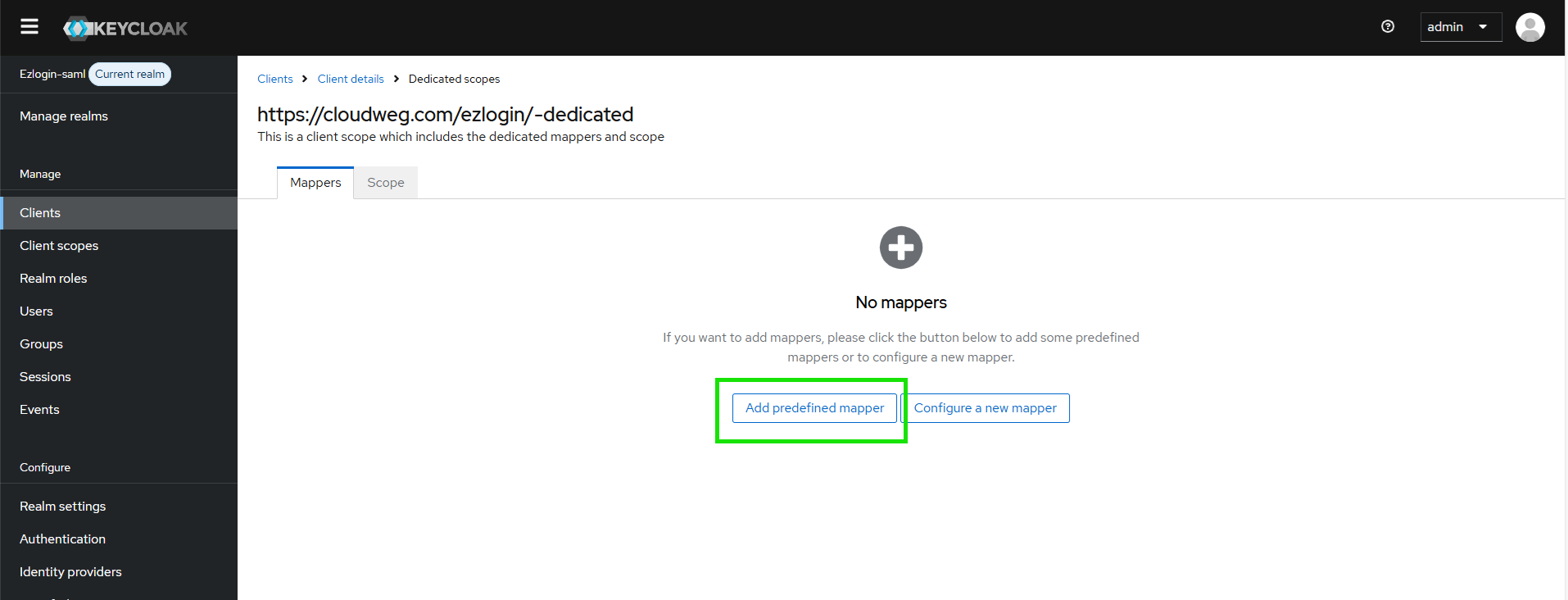

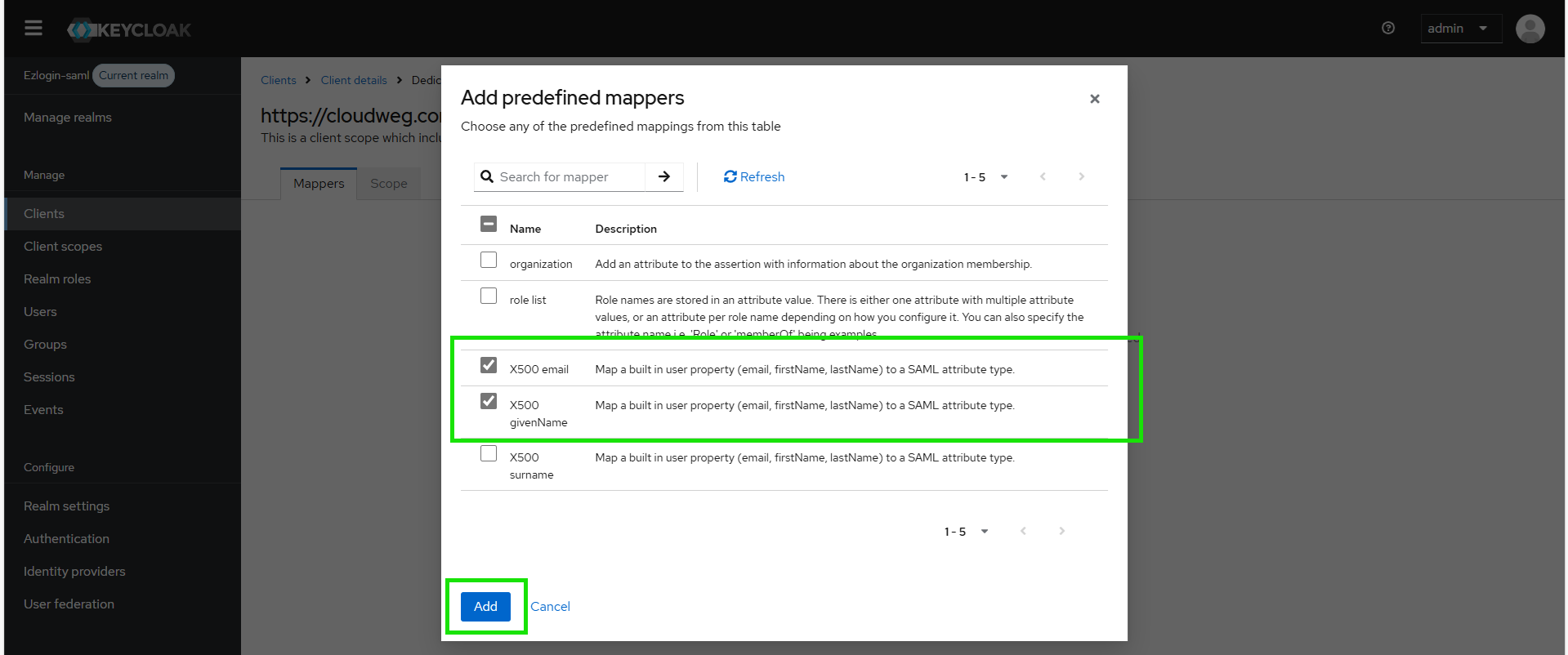

Add predefined Mapper

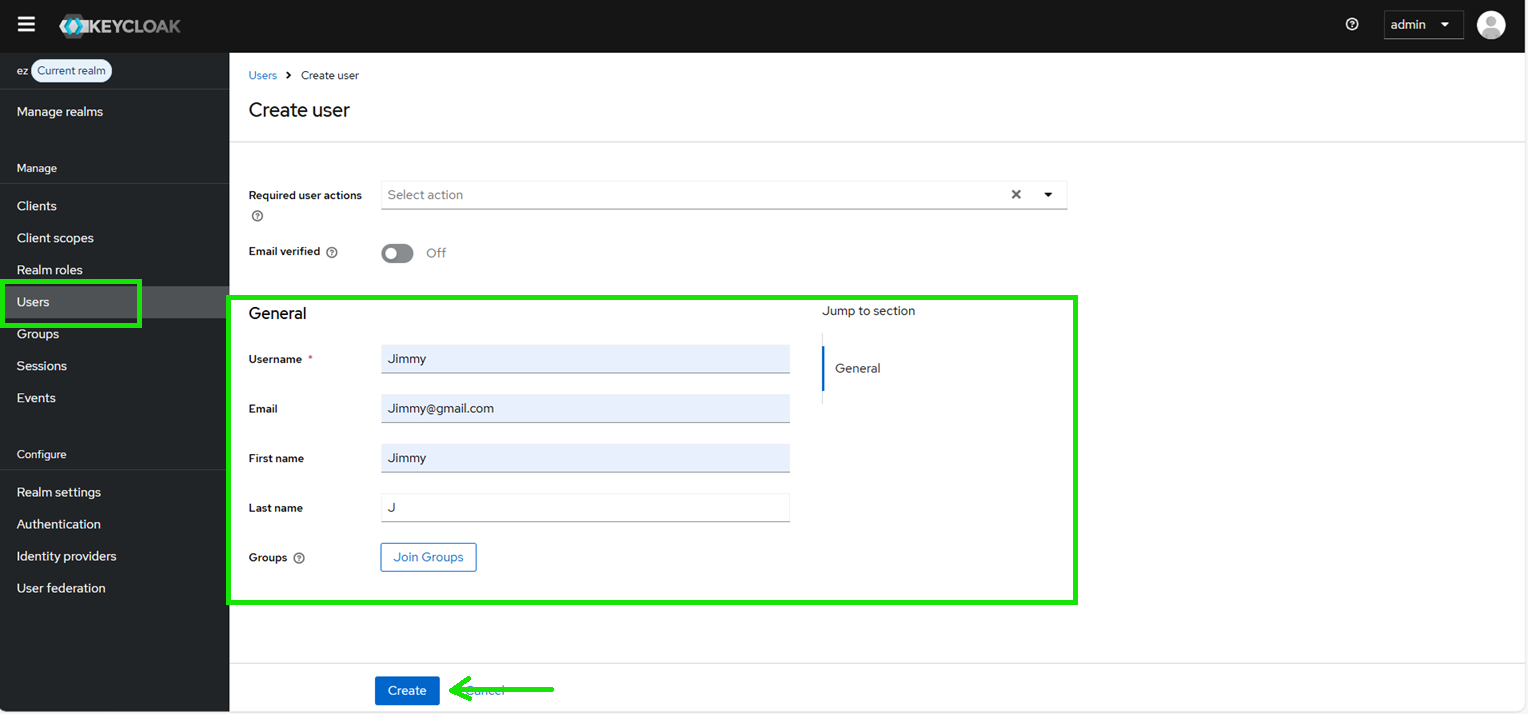

Step 4: Go to the Users tab, click Add User, and enter the Username, Email, First Name, and Last Name, then click Create.

Next, open the Credentials tab, set a password and disable the temporary option.

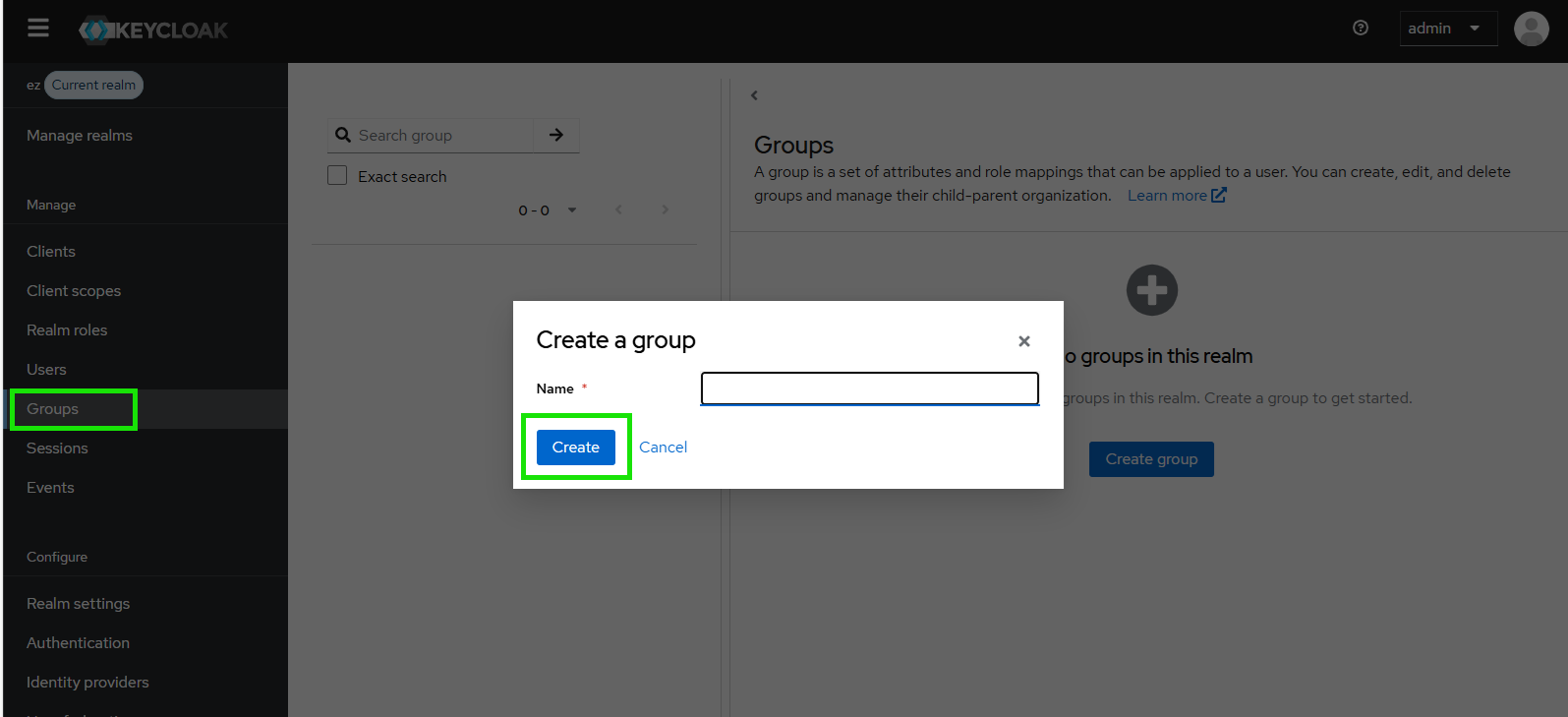

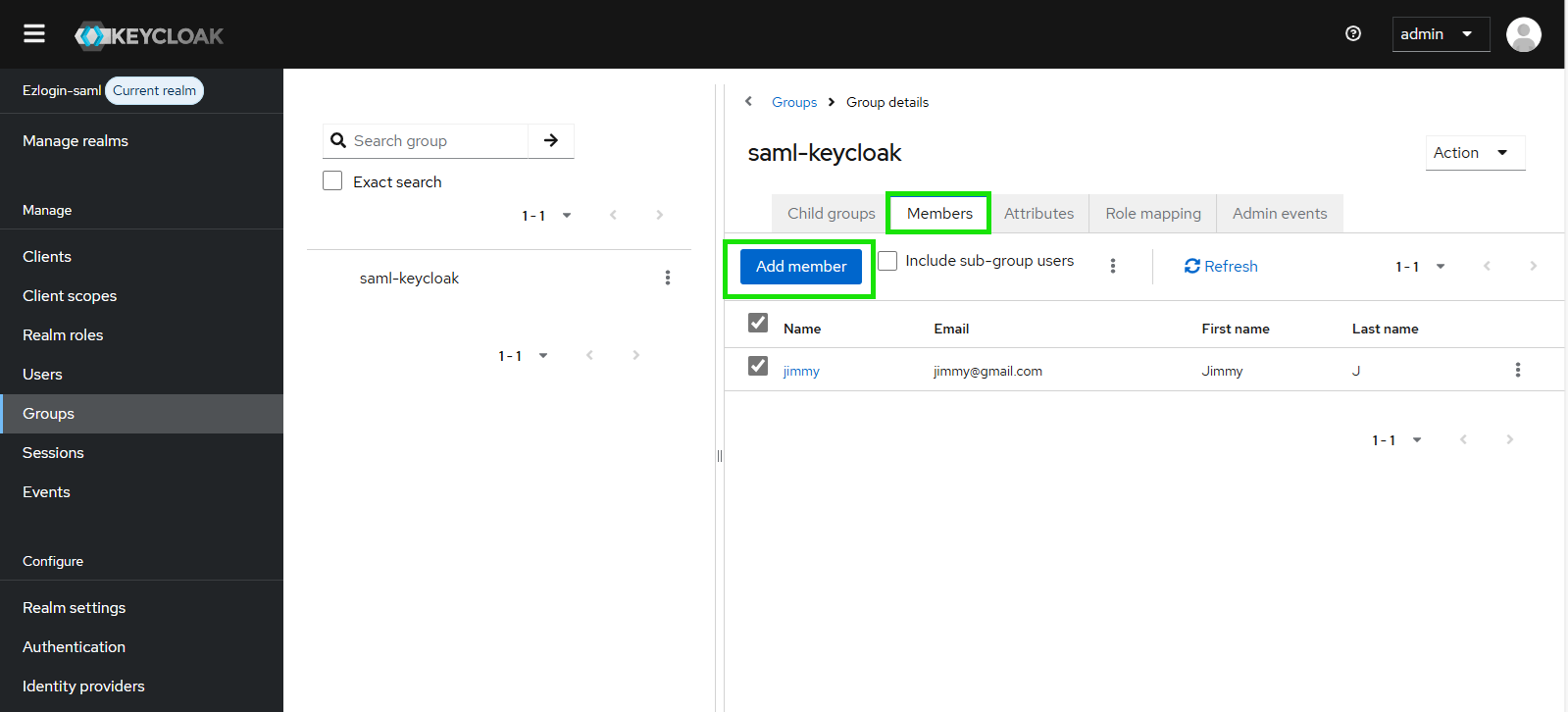

Step 5: Create a group, then add a user as a member of that group.

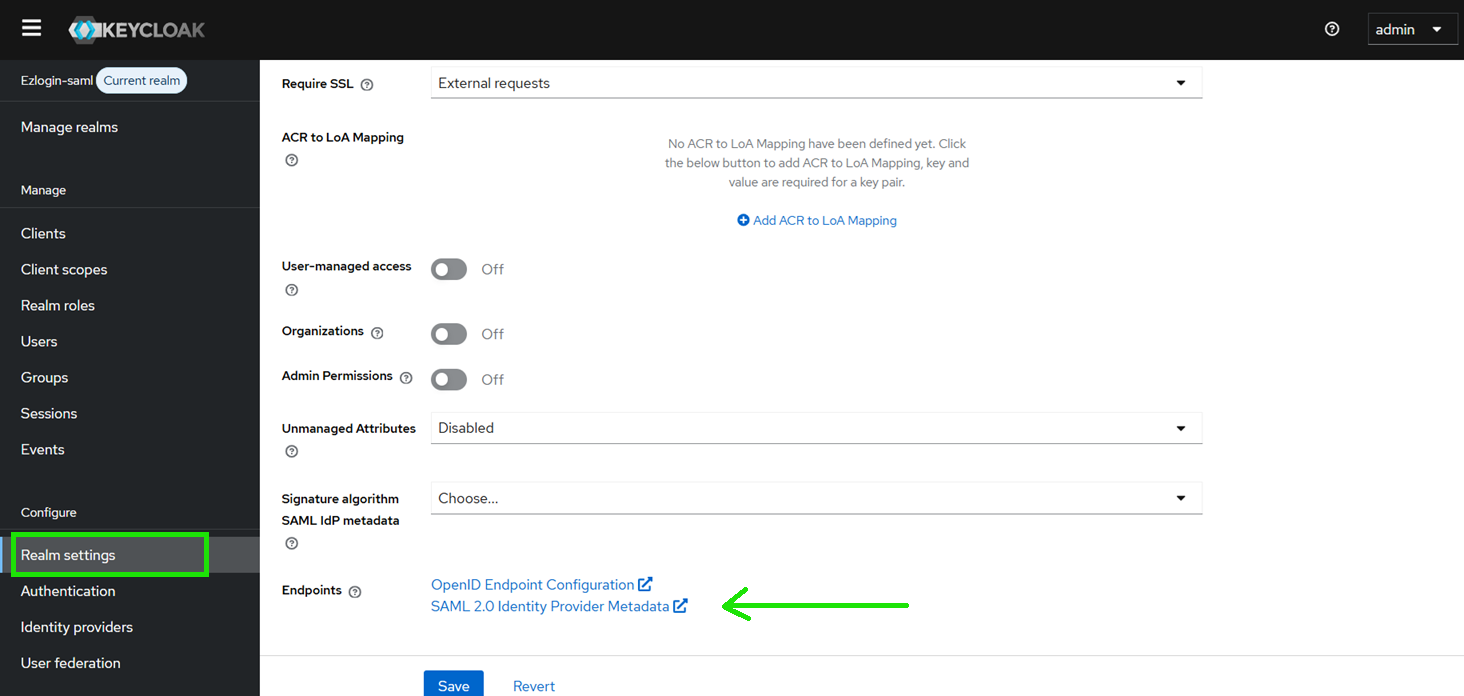

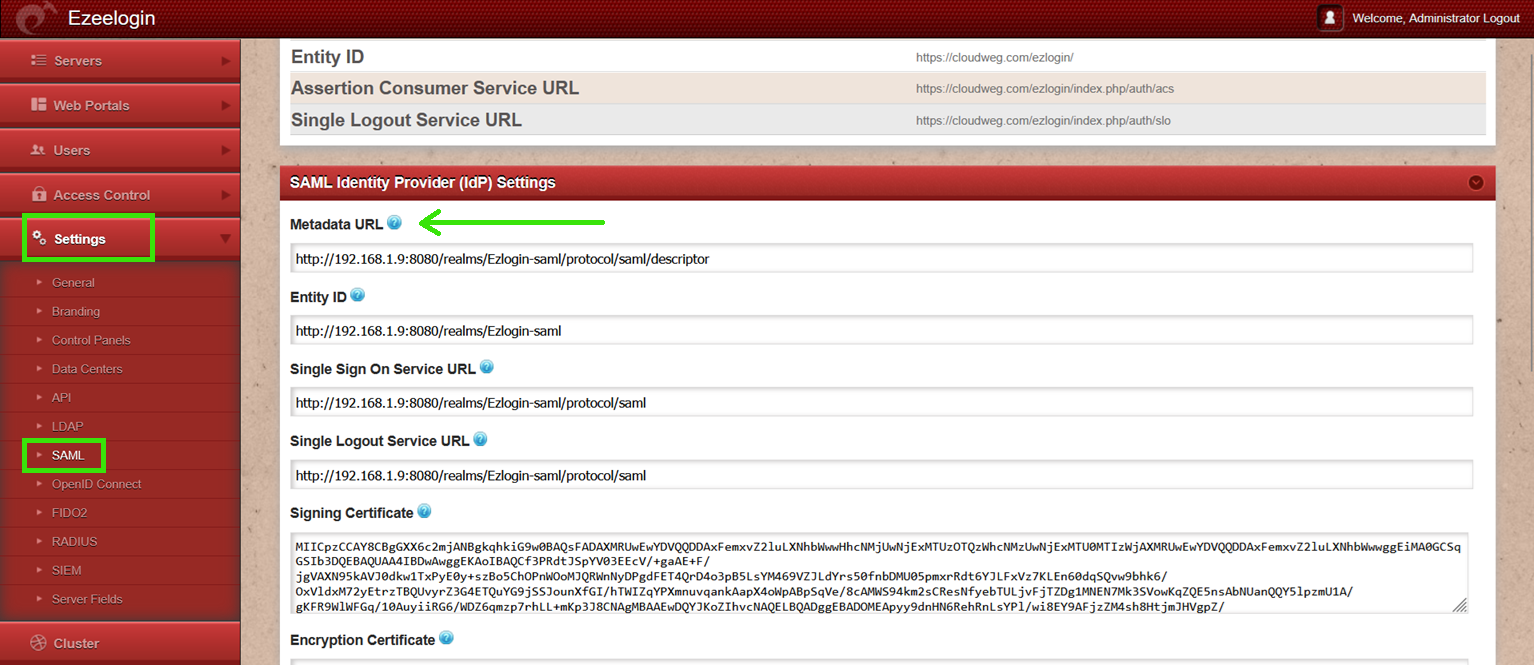

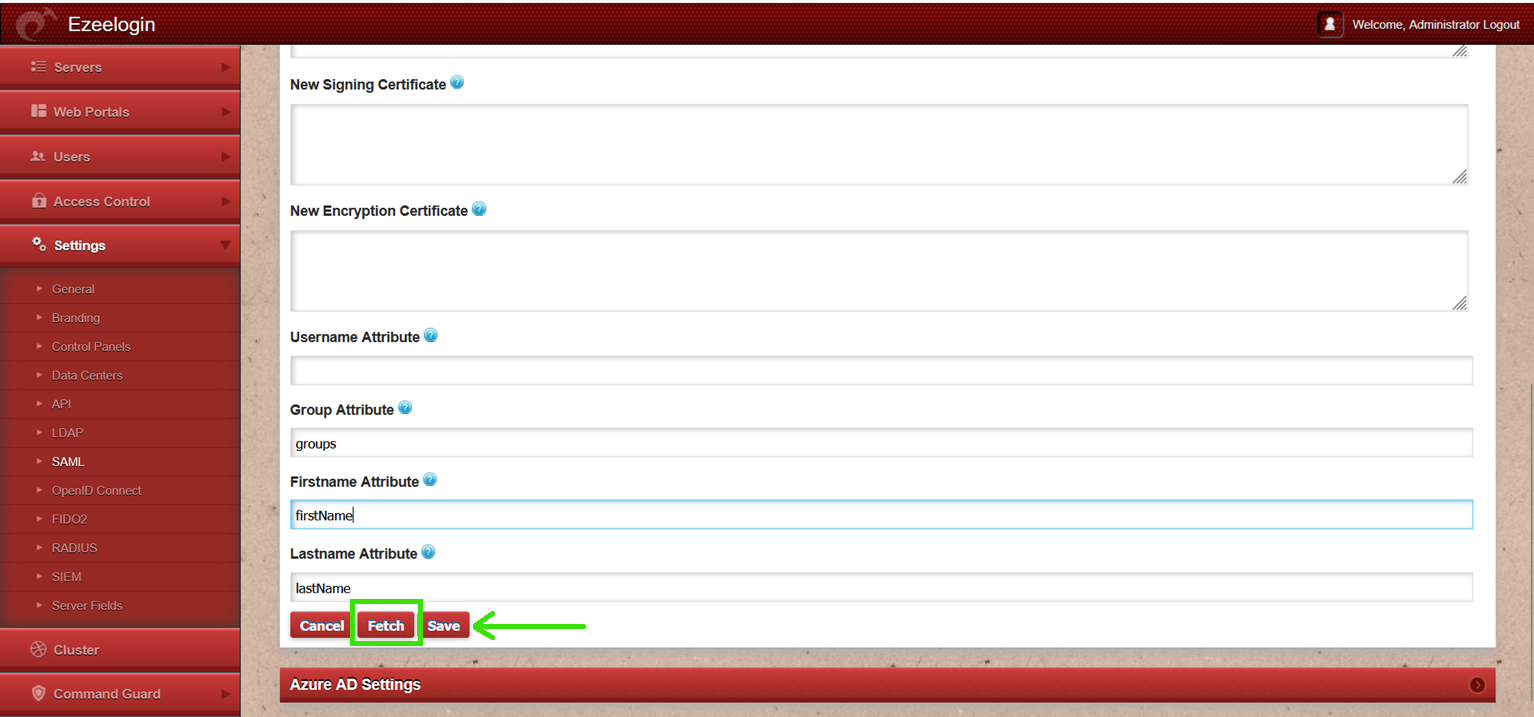

Step 6: Navigate to Realm Settings -> Endpoints, copy the SAML 2.0 Identity Provider Metadata link, paste it into the Metadata URL field in the Ezeelogin GUI, then click Fetch and Save.

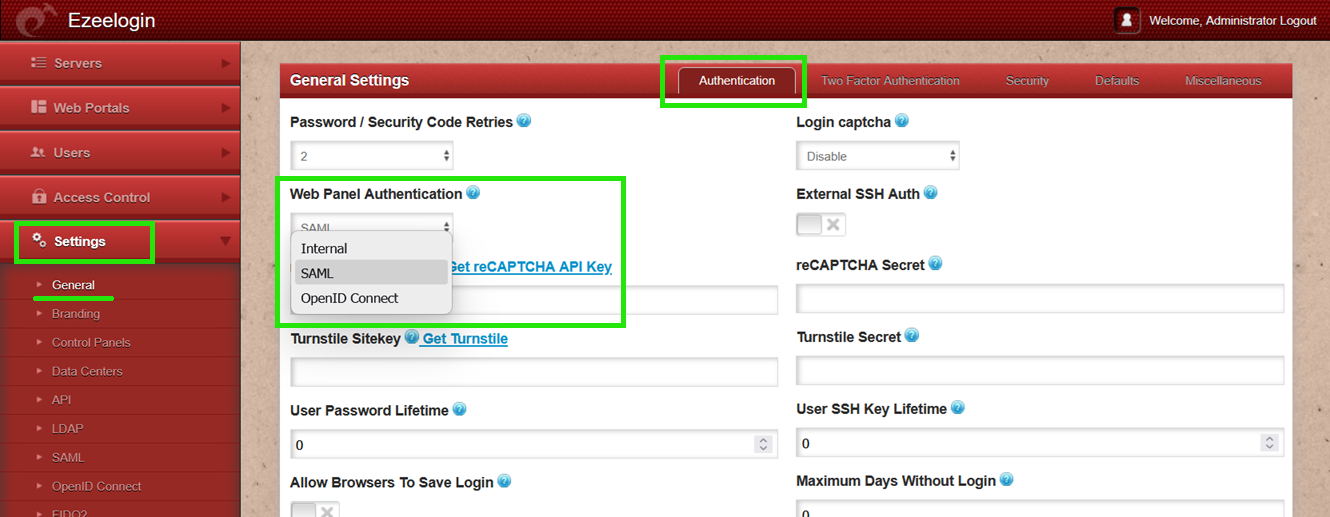

Step 7: Now change Web Panel Authentication Ezeelogin to SAML.

Step 7 (A): Enable Auto Create User in the Ezeelogin GUI by going to Settings -> General -> Security.

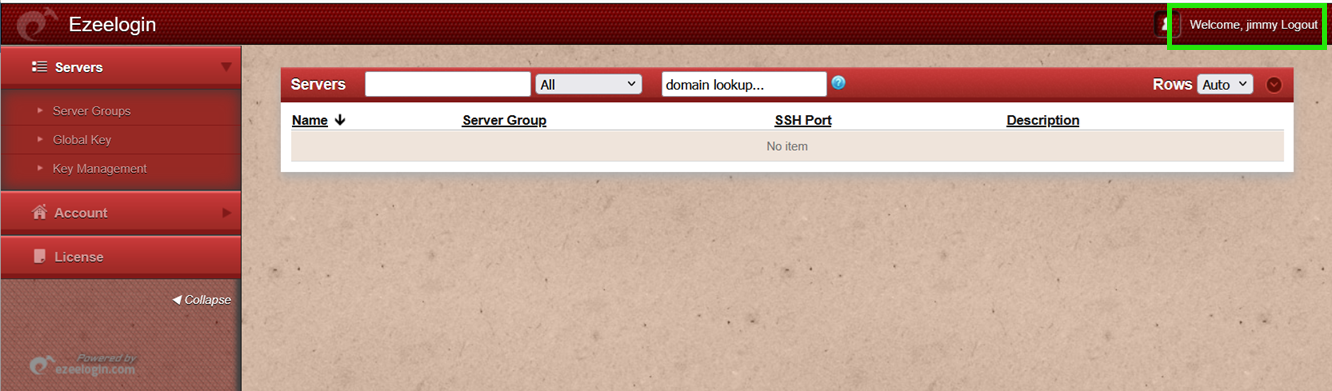

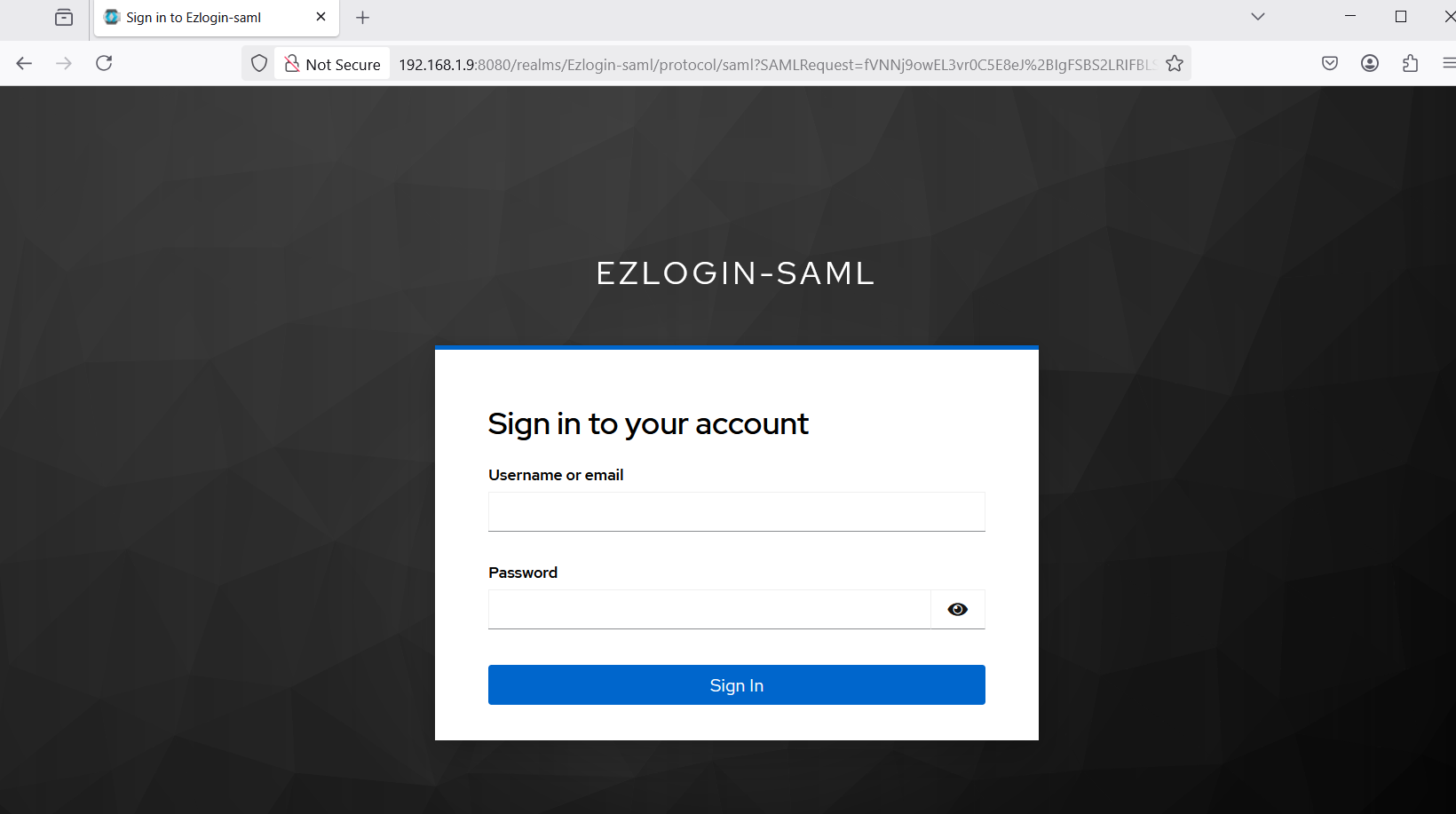

Step 7(B): Re-login to the Ezeelogin GUI with SAML authentication

How to map keycloak users to the same user group in Ezeelogin?

Step 1: From the Clients, select the required client, then open the Client Scopes section.

Choose the assigned client scope and click Add Mapper.

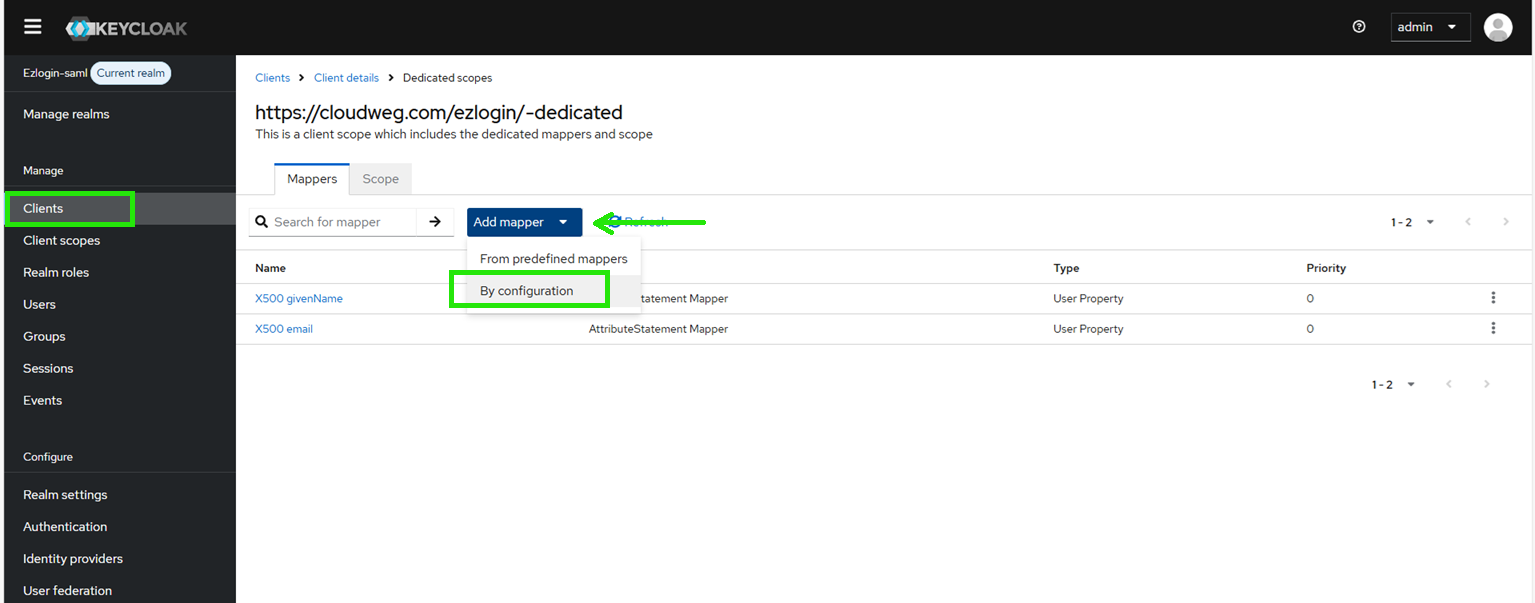

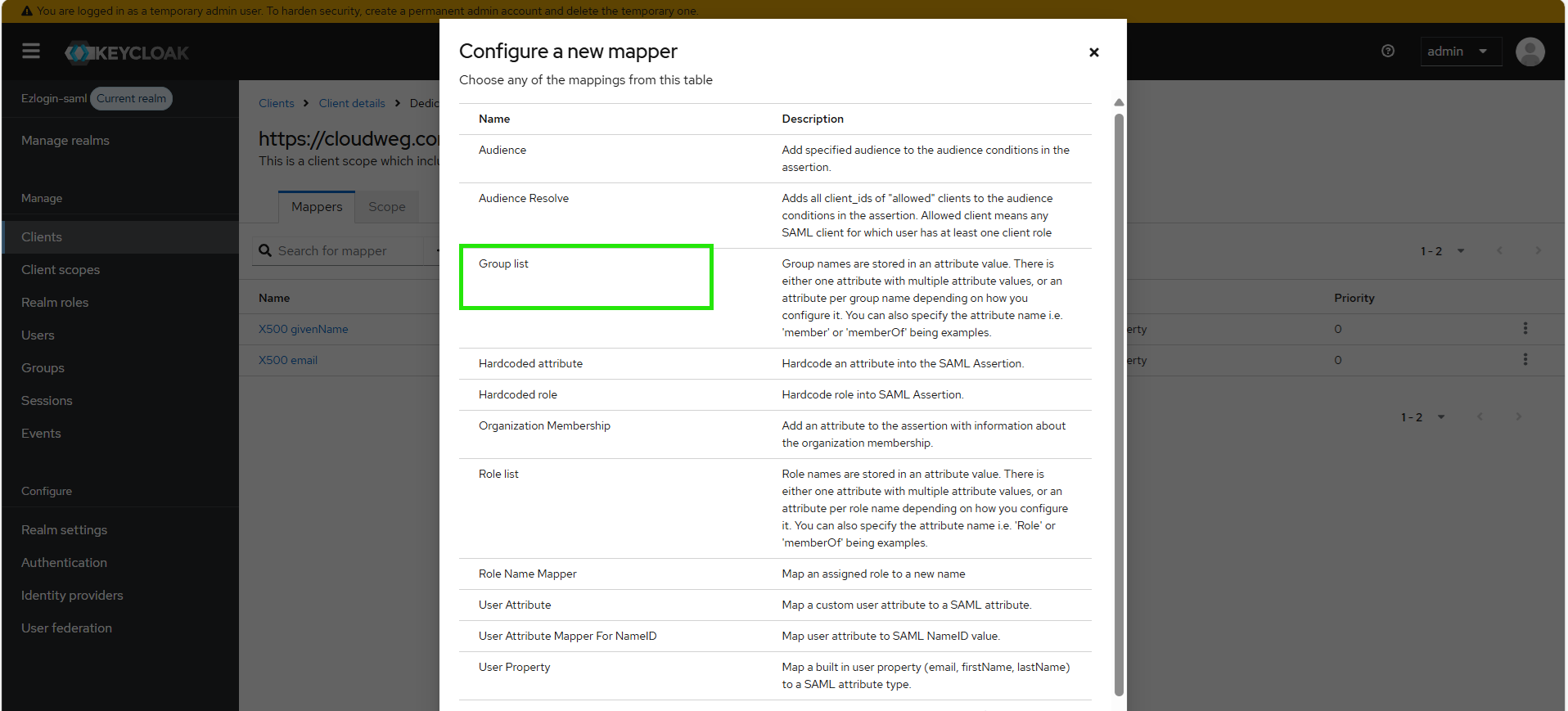

Step 1 (A): Here, add mapper by configuration.

Enter the name and group attribute name, disable the full group path option, and then save.

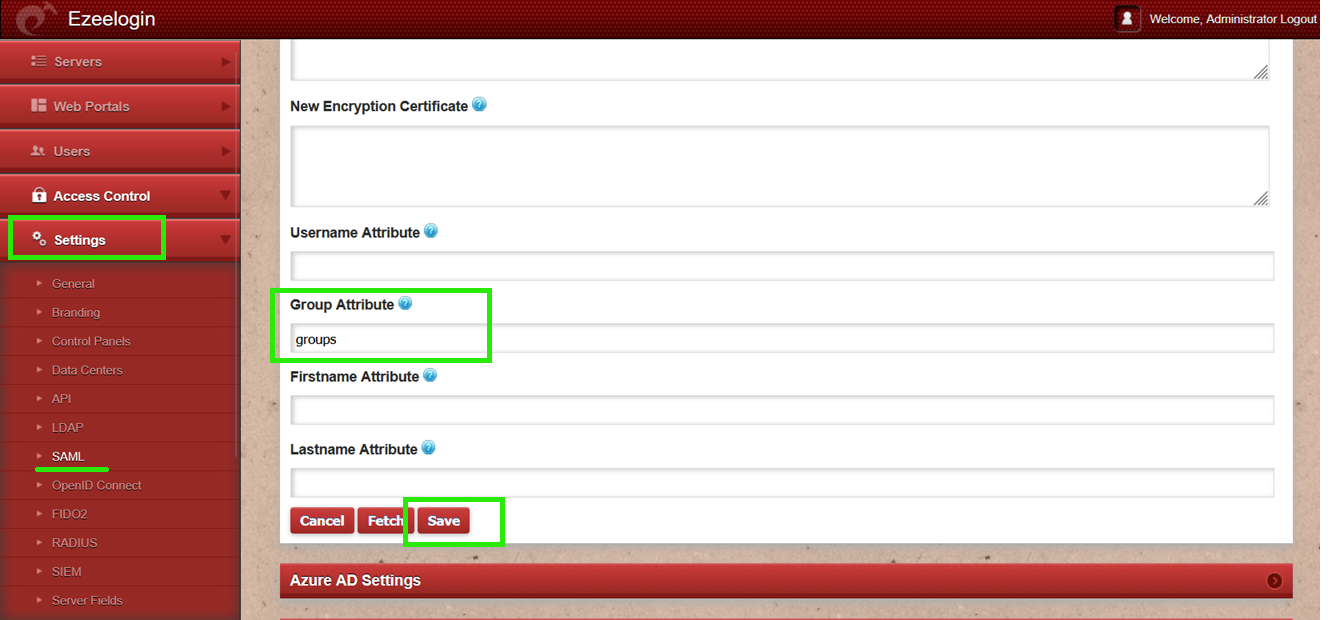

Step 2: Go to Settings -> SAML in the Ezeelogin GUI and enter the group attribute name in the Group Attribute(here groups) field and then click save

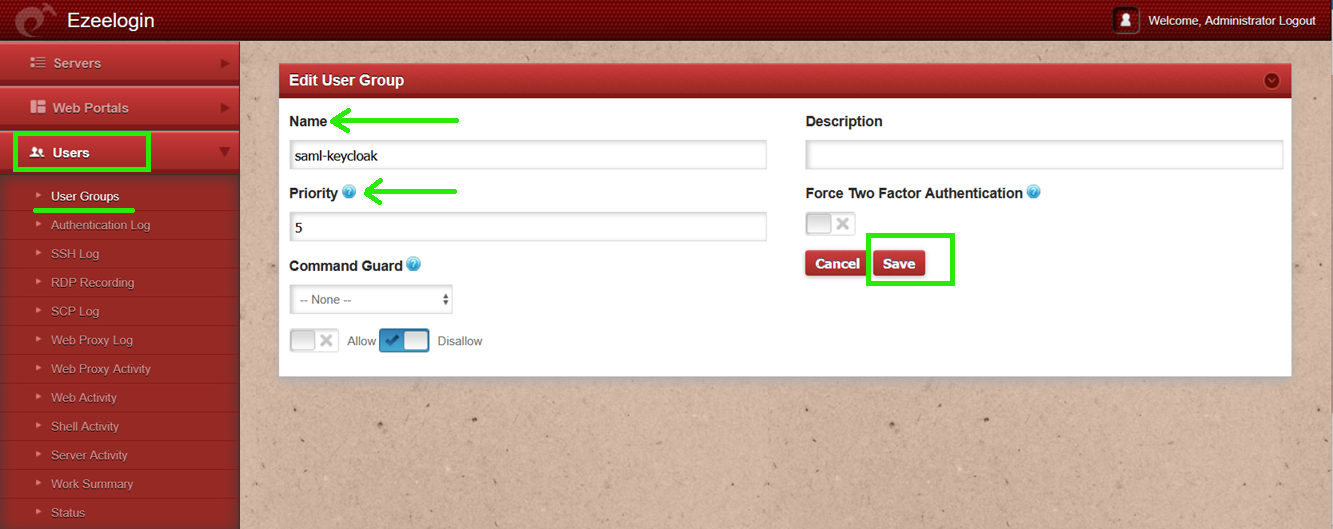

Step 3: Create the same group(already created in keycloak under Groups) in Ezeelogin Gui with  priority and save it.

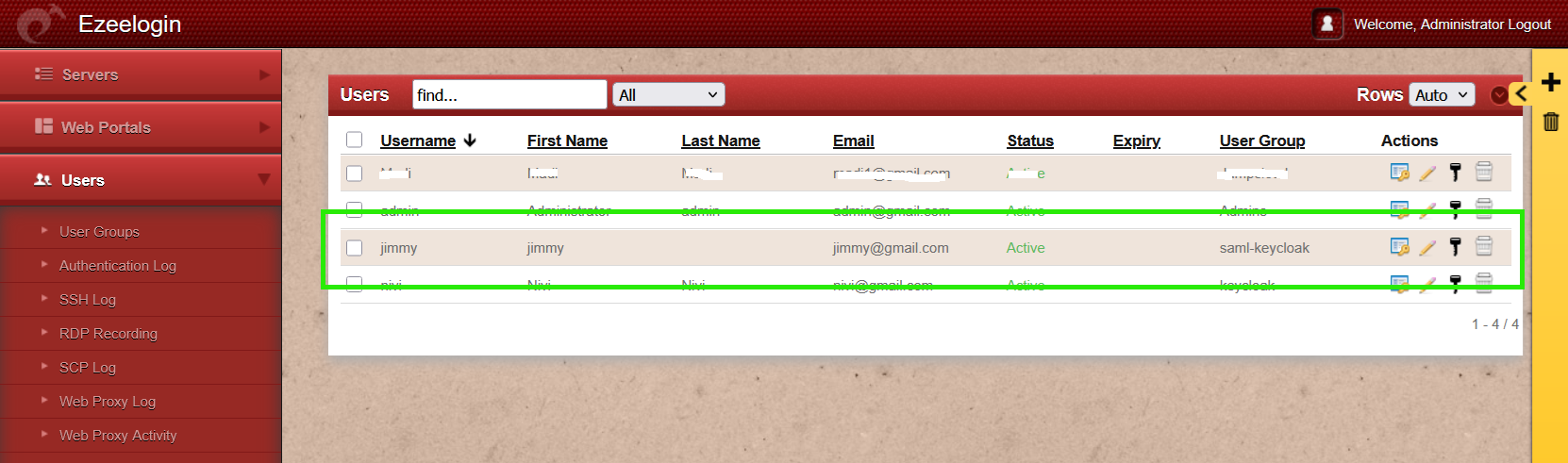

Step 4: In the Ezeelogin GUI, go to Settings -> General -> then change Web Panel Authentication to SAML and access the Ezeelogin GUI and ensure the user is mapped to the corresponding group in Ezeelogin that matches their group in keycloak.
