Authentication of Ezeelogin gateway users using Public keys fetched from Active Directory server

Authentication of SSH users using Public keys fetched from Active Directory server



Extending the Active Directory schema to add ssh key attribute in windows server 2012  and 2016.

1. Launch a cmd prompt then spin up an Administrator cmd by running the following script.

 C:\Users\Administrator>  runas /user:DOMAIN\Administrator cmd

 You’ll get the following terminal after running the above command on cmd.



2. To open the Registry Editor run the following command on Administrator cmd.

C:\windows\system32> regedit

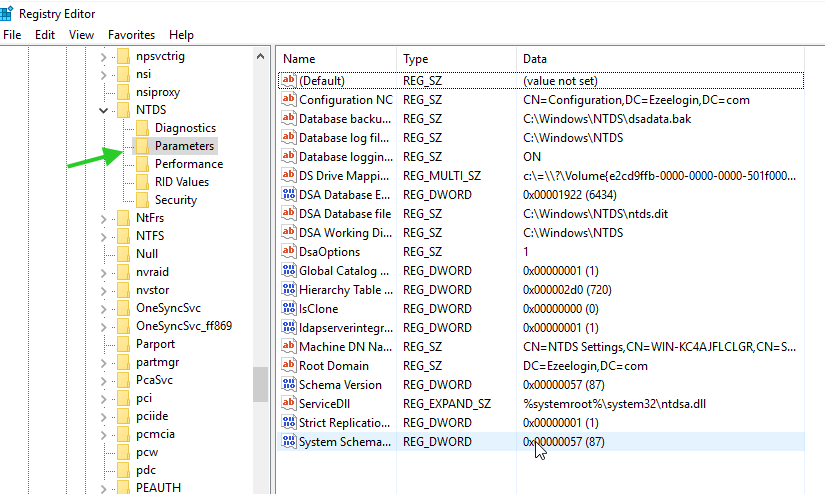

3. Enabling Schema updates in Registry Editor
Browse to HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NTDS\Parameters  and add a new DWORD key named  Schema Update Allowed.



Add Dword with value name Schema Update Allowed and value data 1.





4. Run the following in the Administrator command prompt to enable the schema editor snap-in.

c:\Windows\system32> regsvr32 schmmgmt.dll

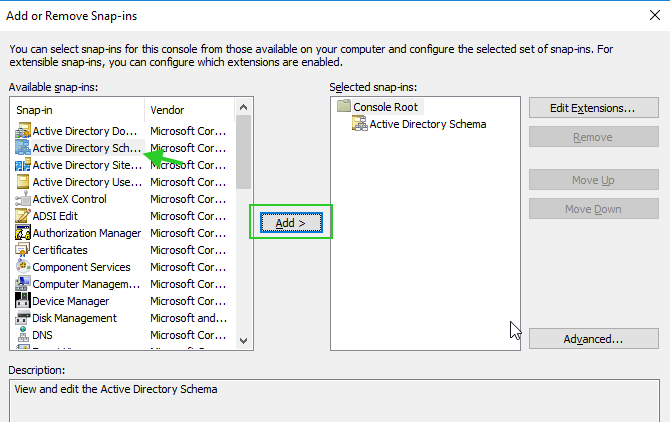

5. Run mmc in the Administrator command prompt to open the Management console. Click on Ctrl + M and add Active Directory Schema as follows.

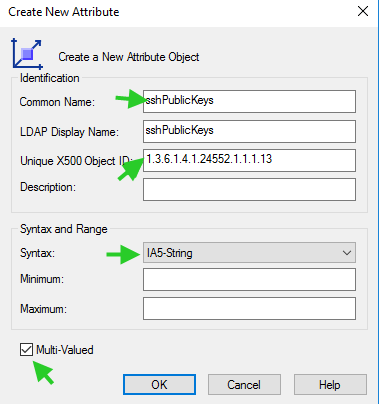

6. Creating a new attribute in Active Directory.

Right Click on Attributes and click ‘Create New Attribute’. Provide the Common Name and LDAP Display Name as sshPublicKeys , ‘Unique X500 Object ID’ as 1.3.6.1.4.1.24552.1.1, Syntax, select IA5-String , finally select the Mutli-Valued box, and click Okay



7. Create a new class for the attribute.

Right-click on Classes and click ‘Create class’. Add ’Common Name’ and ‘LDAP Display Name’, as ldapPublicKey , ’Unique X500 Object ID’ as 1.3.6.1.4.1.24552.500.1.1.2.0, Parent Class as ‘top’, and for Class Type select ‘Auxiliary’. After providing the necessary feilds click on the Next button.

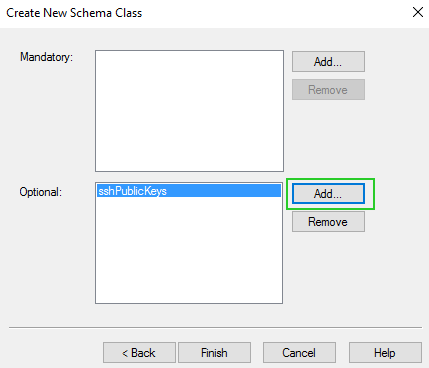

 Add sshPublicKeys under Optional as follows.



8. Associating that class to user objects.
Expand the Classes and right-click on User then select properties. Click on the Relationship tab then click Add Class under Auxiliary class. Finally, Add ldapPublicKey and click ‘Apply’.

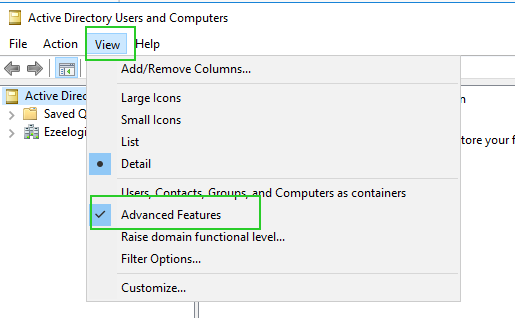

9. Close all other windows and open Active Directory Users and Computers(ADUC) and enable the Advanced feature as follows.

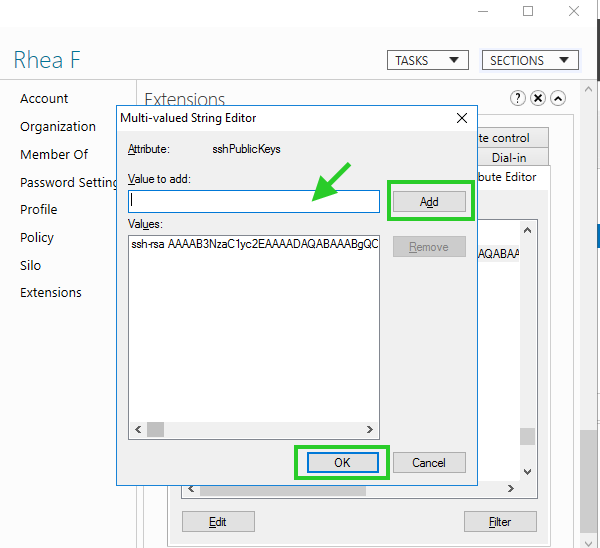

10. Browse to the user and add public keys under Extensions >> Attribute Editor >> sshPublicKeys





 Creating script on Ezeelogin server to fetch SSH key from AD

 Create the following script on your Ezeelogin server under /usr/local/fetchsshkeys.

Replace the Basedn, Hostname_or_IPBinddn , and Password with your Active Directory credentials.

#!/bin/bash ldapsearch -x ’(&(objectClass=*)(sAMAccountName=’"$1"’))’ ’sshPublicKeys’ -b "Base DN" -H ldap://Hostname_or_IP -D "Bind_RDN" -w ’password’ | sed -n ’/^ /{H;d};/sshPublicKeys:/x;$g;s/\n *//g;s/sshPublicKeys: //gp’

Troubleshooting

Ensure that the public key is fetched for the user jake from the Openldap server by running the following command:
[email protected]:~ ldapsearch -x ’(&(objectClass=*)(sAMAccountName=’"harry"’))’ ’sshPublicKeys’ -b "OU=EzAdmin,DC=Ezeelogin,DC=com" -H ldap://192.168.1.7 -D "cn=Administrator,cn=Users,dc=Ezeelogin,dc=com" -w ’zaQ!23edc123’ | sed -n ’/^ /{H;d};/sshPublicKeys:/x;$g;s/\n *//g;s/sshPublicKeys: //gp’

 Add the following lines on the gateway server to your  sshd_config  file to point to the script

AuthorizedKeysCommand /usr/local/fetchsshkeys
AuthorizedKeysCommandUser root

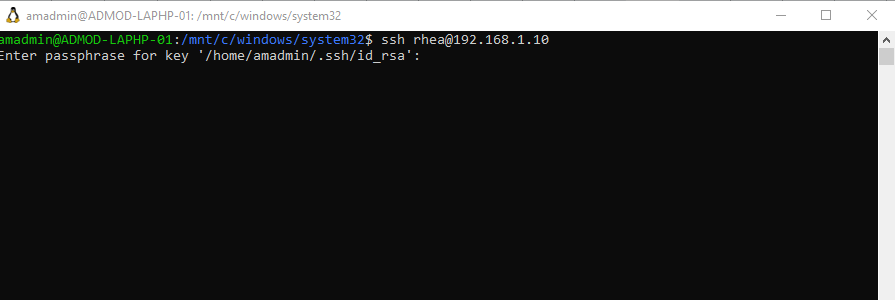

 Now, the user "rhea" will be authenticated using the public key fetched from the Active Directory server
