How to copy a file to a remote server or group of servers behind the ssh jumphost? Parallel Copy - How to do it?

202  admin February 20, 2025  Productivity & Efficiency Features

Transfer / copy files from user desktop to remote servers via the gateway server (backend)

Overview:  This article explains transferring files between a desktop and remote servers via gateway server. It covers copying files to the Ezeelogin jumphost server, using ezsh shell for secure file transfers to individual servers or groups, and exporting SCP logs in .csv format.

Step 1: Copy the file to the Gateway server first. Refer how to copy a file from desktop to ssh jumphost

Step 2: Login into ezsh shell and select the remote server to which the file has to be transferred or the server group to which file has to be transferred.

In the example below, we will be transferring file to remote server PROD-WS01, hence selected as shown. After selecting the server to which the files has to be transferred, press 'f9' or '%' to get the secure copy menu.

In order to transfer the file to a group of servers or a custom list of servers , press 'f7' or  '*' to get to the MEXEC menu, then navigate to the server group or mExec lists(myCustomList)  to which the files needs to be transferred and then press 'f9 'or '%' to get to the secure copy menu.

In the example below, we have chosen the Amazon ec2 instances server group.

parallel-copy-menu

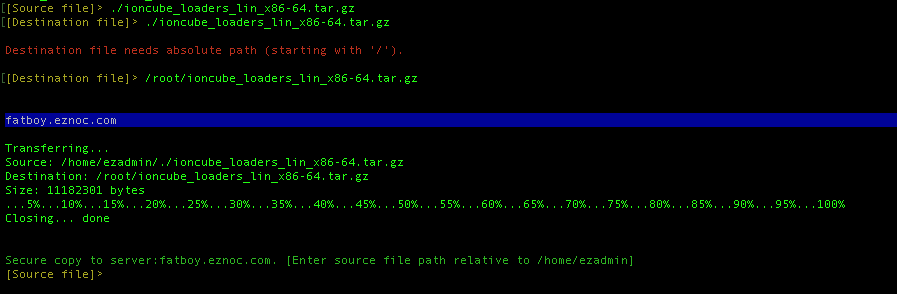

Step 1. Press 'f9' or '%' to open up the Secure Copy  in ezsh shell.  In Source file, enter the relative path to the file that needs to be transferred. In the example, we have selected ioncube_loaders_lin_x86-64.tar.gz as the file to be copied to remote server fatboy.eznoc.com. In the Destination file, enter the absolute path including the complete file name as shown below.

Note: Pressing the 'tab' key would list the different files that is the home directory of the user available for transfer

Note: folders or directory cannot be transferred as such. They have to compressed into a file such a .zip file or .tar file or tar.gz etc to transfer.

When doing a transfer of file to the server group, the output is as shown below. As you can see the files were copied to remote servers 'messi.eznoc.com'  and 'martian.eznoc.com'  which were the members in the server group  'PRODUCTION SERVERS-01'.                    parallel-copy

Note: You can exit from the shell after secure copy by typing the command ' exit '

Transfer logs from the gateway server to the remote server can be found in the below screenshot


  Transfer / Copy files from the remote server to Ezeelogin gateway

Step 1. In the example below, we will use 'centos.server' as the remote server. We will transfer a file from this remote server to the gateway server. Navigate to the remote server and press '^' to open the secure copy in the ezsh shell.



Step 2. we have chosen ioncube_loaders_lin_x86-64.tar.gz as the file to copy from centos.server to the gateway server. Enter the full path of the file in the source file prompt and specify the destination file name. After a successful transfer, files will be available in the /home/ezadmin directory.


 How to transfer files from server group to gateway server. (Remote server to Gateway)


Note: Files in the remote server (group) should have same name in order to transfer from group to gateway server.

Press ' F7 ' or ' * ' in ezsh shell to get into mexec list and then navigate to the server group from which you want to transfer. Then press ' ^ ' to get into the secure copy of ezsh shell.



You need to enter the full path of the file in the source file prompt and specify the name for the file in the destination file prompt. If the specified file is available on the remote servers, it will be successfully transferred to the gateway server. After a successful transfer, files will be available in the /home/ezadmin directory.




Note:

The transferred file will be saved in filename_remote.server_timestamp  format.

In the above example it will be  ioncube_loaders_lin_x86-64.tar.gz_centos.server~Thu_Apr_29_05:18:33_2021

Here    ioncube_loaders_lin_x86-64.tar.gz is the filename ,  centos.server is the remote server and  Thu_Apr_29_05:18:33_2021 is the timestamp.


Transfer logs from the remote server to the gateway server can be found in the below screenshot.

How to export SCP Log?
You can download all the SCP logs of the users in .csv format by clicking on export. Refer the below screenshot
