Integrate Windows AD with CentOS using SSSD

How to integrate Windows AD with Centos 8 using SSSD?



Ensure that the following ports on the RHEL host are open and accessible to the AD domain controllers.

DNS =53, LDAP =389, Kerberos 88 & 464, LDAP Global Catalog 3268 and NTP 123 (UDP)

Verify that the system time on both systems is synchronized. This ensures that Kerberos is able to work correctly.

Refer article to correct server time in Centos, RHEL, Ubuntu, SUSE

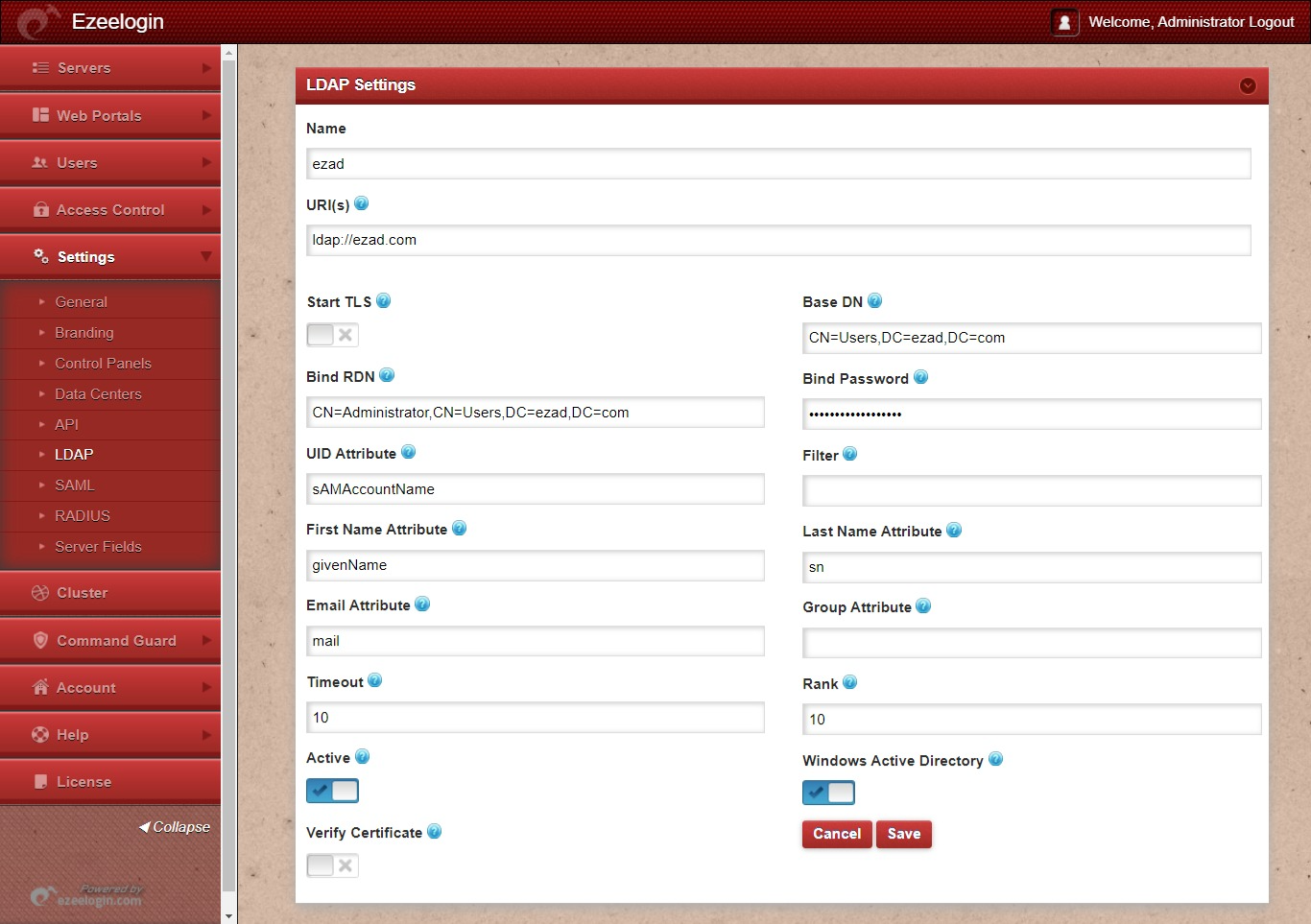

1  .  Login to Ezeelogin Web-GUI > open settings > Ldap


   Add the details of LDAP configurations.



2. Go to   Settings > General > Authentication > change Web Panel Authentication to LDAP


3. Select the LDAP users and click on the button to  import users into Ezeelogin



     You can confirm the imported LDAP users were listed in the Users tab in Ezeelogin GUI.  You will be able to log in to Ezeelogin GUI with windows user credentials.


4. Enable Security Code LDAP option from Settings > General > Authentication, if the user does not want to login to Ezeelogin GUI to set up a security code.




Backend configuration to integrate windows with RHEL 8



1. Install required packages.

[email protected] ~]# yum install realmd sssd oddjob oddjob-mkhomedir adcli samba-common samba-common-tools krb5-workstation authselect-compat nscd -y

2. Provide Windows IP and Windows domain name in hosts file.

[email protected] ~]# vim /etc/hosts

windows_ip  windows_domain_name

3. Provide Windows IP in resolv.conf  to resolve and discover AD domain.

[email protected] ~]# vim /etc/resolv.conf

nameserver  windows_ip

4. Check if AD domain discovery is successful. Refer below example with ldapad.com

[email protected] ~]# realm discover ldapad.com

ldapad.com
type: kerberos
realm-name: LDAPAD.COM
domain-name: ldapad.com
configured: kerberos-member
server-software: active-directory
client-software: sssd
required-package: oddjob
required-package: oddjob-mkhomedir
required-package: sssd
required-package: adcli
required-package: samba-common-tools
login-formats: %[email protected]
login-policy: allow-realm-logins

5. Join CentOS 8  in Active Directory domain. Replace Admininstrator with Windows admin account.

[email protected] ~]# realm join ldapad.com -U Administrator

Password for Administrator:

6. Confirm joining successful with realm list. Refer below example.

[email protected] ~]# realm list
ldapad.com
type: kerberos
realm-name: LDAPAD.COM
domain-name: ldapad.com
configured: kerberos-member
server-software: active-directory
client-software: sssd
required-package: oddjob
required-package: oddjob-mkhomedir
required-package: sssd
required-package: adcli
required-package: samba-common-tools
login-formats: %[email protected]
login-policy: allow-realm-logins

7. After successful joining you will get below sssd.conf and you need to change use_fully_qualified_names to False and shell to ezsh.

[email protected] ~]# vim /etc/sssd/sssd.conf

[sssd]
domains = ldapad.com
config_file_version = 2
services = nss, pam

[domain/ldapad.com]
ad_domain = ldapad.com
krb5_realm = LDAPAD.COM
realmd_tags = manages-system joined-with-adcli
cache_credentials = True
id_provider = ad
krb5_store_password_if_offline = True
default_shell = /bin/bash
ldap_id_mapping = True
use_fully_qualified_names = False
fallback_homedir = /home/%[email protected]%d
access_provider = ad

override_shell = /usr/local/bin/ezsh

8. Restart sssd and nscd using the below commands.
[email protected] ~]# service sssd restart && service nscd restart

9. Run id username /getent passwd username and see AD user details.

[email protected] ~]# id john
uid=1701601108(john) gid=1701600513(domain users) groups=1701600513(domain users)
[email protected] ~]# getent passwd john
john:*:1701601108:1701600513:john user:/home/[email protected]:/usr/local/bin/ezsh

Use the below command to clear the cache of the user.

[email protected] ~]#   sss_cache -u username
